Product Details

Description

Pinout

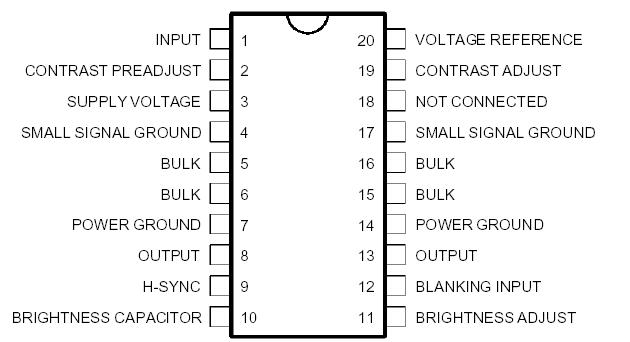

Connection Diagram

Description

The TDA9201 is a wide band video amplifier intended for high resolution monochrome or color monitors.

The BRIGHTNESS and CONTRAST are DC controlled.

The brightness loop includes a comparator gated by an internally generated pulse.

Thanks to the contrast pre-adjust pin, this TDA9201 is well suited for color application too.

The output stage structure (A class current output), allows to use a very cheap high voltage amplifier using only one transistor.
