Features:

FEATURES
· Luminance transient improvement
· Line width control
· Can be used in 50 and 100 Hz environments (1FH and 2FH)
· Compensating chrominance delay
· YUV interface
· Black insertion or clamping are selectable
· Amplitude selection for optimum operation with
  450 mV (p-p) and 1 Vbl-wh luminance signals.

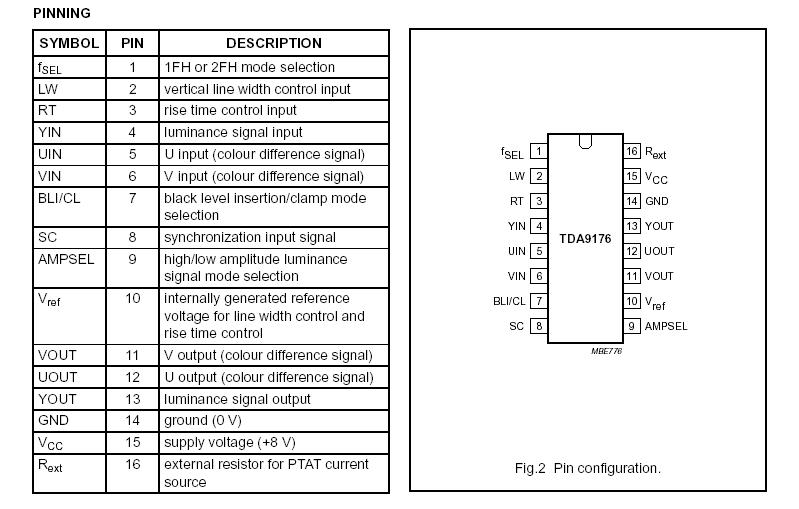

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   - 9.0 V
ICC supply current   - 35 mA
Ptot total power dissipation   - 0.315 W
Tstg storage temperature   -55 +150 °C
Tstg storage temperature   -55 +150 °C
Tamb operating ambient temperature   -10 +70 °C
Ves electrostatic handling note 1 -3000 +3000 V
note 2 -300 +300 V



Description

GENERAL DESCRIPTION
   The TDA9176 is a Luminance Transient Improvement (LTI) IC which is suitable for operation in both 50 and 100 Hz environments. The device can be used in conjunction with both LCD and CRT displays. The TDA9176 also contains chrominance delay lines to compensate for the luminance delay. The device can be used as a low-power, cost effective alternative to (but also in combination with) Scan Velocity Modulation (SVM). The device operates at a supply voltage of 8 V. The device is contained in a 16 pin dual in-line package.
