Features:

FEATURES
· Picture content dependent non-linear Y and U, V
  processing by histogram analysis
· Adaptive and variable gamma correction controls
· Black and white stretch capabilities
· Transparent I2C-bus control
· On-chip window generator for valid histogram
  measurement and black detection.


Pinout

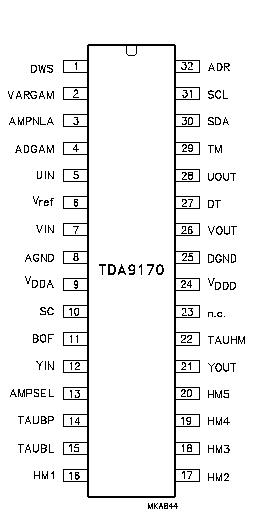

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA analog supply voltage   -0.5 +8.8 V
VDDD digital supply voltage   -0.5 +5.5 V
Vref reference supply voltage   -0.5 +5.5 V
Vn voltage input/output on any other pin   -0.5 VDDA + 0.5 V
Tstg storage temperature   -55 +150 °C
Tamb operating ambient temperature   -10 +70 °C
Ves electrostatic discharge note 1 -2000 +2000 V
note 2 -200 +200 V



Description

  The TDA9170 is a transparent analog video processorwith a YUV interface. It offers three main luminanceprocessing functions any combination of which can beselected.
  The luminance transfer is controlled in a non-linearmanner by the distribution (in 5 discrete histogramsections) of the luminance values measured in a picture.As a result, the contrast ratio of the most important parts ofthe picture will be improved.
  The TDA9170 is a transparent analog video processor Black restoration is available in the event of a set-up in the luminance signal. A variable gamma function, after the histogram conversion, offers the possibility of excellent brightness control.The luminance transfer is controlled in a non-linearo maintain a proper colour reproduction, the saturation o the U and V colour difference signals are controlled as a function of the actual non-linearity in the luminance channel.
