Features:

FEATURES
General
 6.75, 13.5 and 27MHz clock frequency
 Few external components
 Synchronous logic
 I2C-bus controlled
 Easy interfacing
 Low power
 ESD protection Flash detection with restart
 Two-level sandcastle pulse.


Pinout

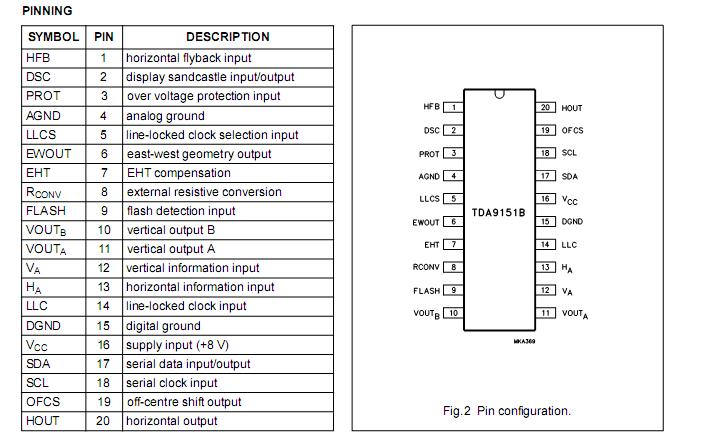

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VCC supply voltage -0.5 8.8 V
ICC supply curren -10 +50 mA
Ptot total power dissipation - 500 mW
Tstg storage temperature -65 +150 °C
Tamb operating ambient temperature -25 +70 °C
Vsupply voltage supplied to pins1to3, 5to14 and 17to20 -0.5 V +0.5 V
II/O current in or out of any pin except pins 4, 15 and 16 -20 +20 mA
VESD lectrostatic handling for all pins (note1) - ±2000 V



Description

GENERAL DESCRIPTION
   The TDA9151B is a programmable deflection controller contained in a 20-pin DIP package and constructed using
BIMOS technology. This high performance synchronization and DC deflection processor has bee especially designed for use in both digital and analog based TV receivers and monitors, and serves horizontal and vertical deflection functions for all TV standards. The TDA9151B uses a line-locked clock at 6.75, 13.5 or 27MHz, depending on the line frequency and application, and requires only a few external components. The device can be programmed in a self-adaptive mode or in a programmable fixed slope mode. Selection of these modes and a large number of other functions is fully programmable via the I2C-bus.
