TDA9150B

Features:

FEATURES
General
 6.75, 13.5 and 27MHz clock frequency
 Few external components
 Synchronous logic
 I²C-bus controlled
 Easy interfacing
 Low power
 ESD protection
 Flash detection with restart
 Two-level sandcastle pulse.

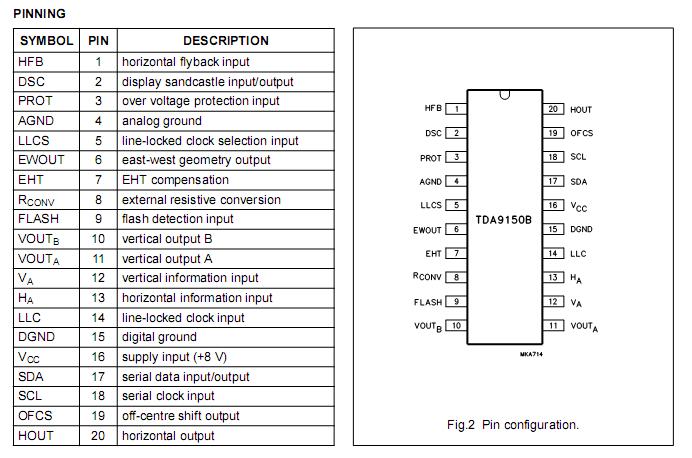

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VCC	supply voltage	-0.5	8.8	V
ICC	supply curren	-10	+50	mA
Ptot	total power dissipation	-	500	mW
Tstg	storage temperature	-65	+150	?C
Tamb	operating ambient temperature	-25	+70	?C
Vsupply	voltage supplied to pins1to3, 5to14 and 17to20	-0.5	V +0.5	V
II/O	current in or out of any pin except pins 4, 15 and 16	-20	+20	mA
VESD	lectrostatic handling for all pins (note1)	-	-2000	V

Description

GENERAL DESCRIPTION
    The TDA9150B is a programmable deflection controller contained in a 20-pin DIP package and constructed using BIMOS technology. This high performance synchronization and DC deflection processor has been especially designed for use in both digital and analog based TV receivers and monitors, and serves horizontal and vertical deflection functions for all TV standards. The TDA9150B uses a line-locked clock at 6.75, 13.5 or 27MHz, depending on the line frequency and application,and requires only a few external components. The device is self-adaptive for a number of functions and is fully programmable via the  I²C-bus.
