TDA9144

Features: FEATURES· Multi-standard colour decoder and sync processor for PAL, NTSC and SECAM· PALplus helper demodulator· PALplus helper blanking and EDTV-2 blanking· I2C-bus controlled· I2C-bus addresses hardware selectable· Pin compatible with TDA9141· Alignment free· Few external components· De...

product image

TDA9144 Picture
See larger image
SeekIC No. : 004516920 Detail

TDA9144: Features: FEATURES· Multi-standard colour decoder and sync processor for PAL, NTSC and SECAM· PALplus helper demodulator· PALplus helper blanking and EDTV-2 blanking· I2C-bus controlled· I2C-bus add...

TDA9144 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9144
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

FEATURES
· Multi-standard colour decoder and sync processor for PAL, NTSC and SECAM
· PALplus helper demodulator
· PALplus helper blanking and EDTV-2 blanking
· I2C-bus controlled
· I2C-bus addresses hardware selectable
· Pin compatible with TDA9141
· Alignment free
· Few external components
· Designed for use with baseband delay lines
· Integrated video filters
· Adjustable luminance delay
· Noise detector with I2C-bus read-out
· Norm/no_norm detector with I2C-bus read-out
· CVBS or Y/C input, with automatic detection possibility
· CVBS output provided I2C-bus address 8A is used
· Vertical divider system
· Two-level sandcastle signal
· VA synchronization pulse (3-state)
· HA synchronization pulse or clamping pulse CLP input/output
· Line-locked clock output (6.75 MHz or 6.875 MHz) or stand-alone I2C-bus output port
· Stand-alone I2C-bus input/output port
· Colour matrix and fast YUV switch
· Comb filter enable input/output with subcarrier frequency
· Internal bypass mode of external delay line for PALplus and NTSC applications
· Low power standby mode with 3-state YUV outputs
· Fast blanking detector with I2C-bus read-out
· Blanked or unblanked sync on Yout by I2C-bus bit BSY
· internal MACROVISION gating for the horizontal PLL enabled by bus bit EMG.



Pinout

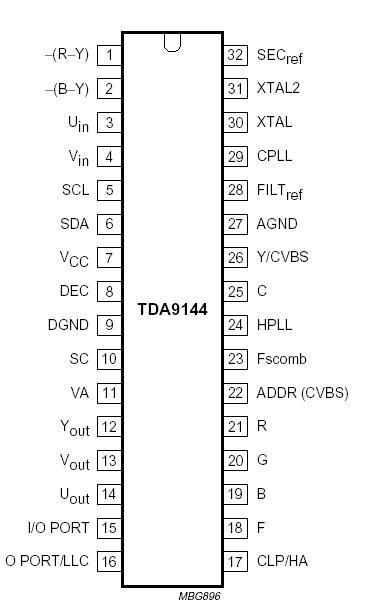

Connection Diagram


Description

  The TDA9144 is an I2C-bus controlled, alignment-free PAL/NTSC/SECAM decoder/sync processor with helper demodulator for PALplus signals and blanking facilities for PALplus and EDTV-2 signals. The TDA9144 has been designed for use with baseband chrominance delay lines, and has a combined subcarrier frequency/comb filter enable signal for communication with a PAL/NTSC comb filter.

  The TDA9144 can process both CVBS input signals and Y/C input signals. The input signal is available on an output pin, in the event of a Y/C signal, it is added into a CVBS signal. The sync processor provides a two-level sandcastle, a horizontal pulse (CLP or HA pulse, bus selectable) and a vertical (VA) pulse. When the HA pulse is selected, a line-locked clock (LLC) signal is available at the output port  pin (6.75 MHz or 6.875 MHz).
