Features:

ADVANCED I2C BUS CONTROLLED DEFLECTION PROCESSOR DEDICATED FOR HIGH-END CRT MONITORS
SINGLE SUPPLY VOLTAGE 12V
VERY LOW JITTER
DC/DC CONVERTER CONTROLLER
ADVANCED EW DRIVE
ADVANCED ASYMMETRY CORRECTIONS
AUTOMATIC MULTISTANDARD SYNCHRONIZATION
VERTICAL DYNAMIC CORRECTION WAVEFORM OUTPUT
X-RAY PROTECTION AND SOFT-START & STOP ON HORIZONTAL AND DC/DC DRIVE OUTPUTS
I2C BUS STATUS REGISTER


Pinout

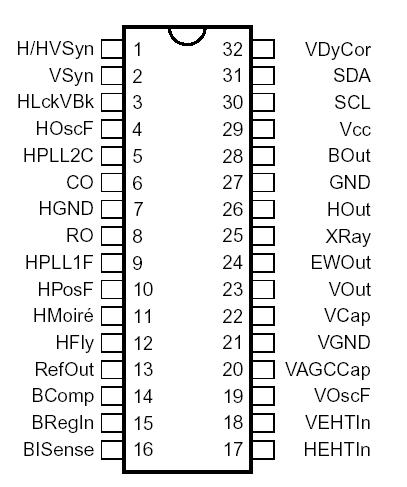

Connection Diagram


Specifications

Symbol Parameter Value Unit
Min Max
VCC Supply voltage (pin Vcc) -0.4 13.5 V
V(pin) Pins HEHTIn, VEHTIn, XRay, HOut, BOut
Pins H/HVSyn, VSyn, SCL, SDA
Pins HLckVBk, CO, RO, HPLL1F, HPosF, HMoiré, BRegIn, BISense, VAGCCap, VCap, VDyCor, HOscF, VOscF
Pin HPLL2C
Pin HFly

-0.4
-0.4
-0.4

-0.4
-0.4

VCC
5.5
VRefO

VRefO/2
VRefO

V
V
V

V
V

VESD ESD susceptibility
(human body model: discharge of 100pF through 1.5k  )		 -2000 2000 V
Tstg Storage temperature -40 150 °C
Tj Junction temperature   150 °C



Description

The TDA9116 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors.

The internal sync processor, combined with the powerful geometry correction block, makes the TDA9116 suitable for very high performance monitors, using few external components.

Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier, video amplifier, OSD controller) the TDA9116 allows fully I2C bus-controlled computer display monitors to be built with a reduced number of external components.
