TDA9115

Features: GeneralI2C-BUS-CONTROLLED DEFLECTION PROCESSOR DEDICATED FOR LOW-END CRT MONITORSSINGLE SUPPLY VOLTAGE 12VVERY LOW JITTERDC/DC CONVERTER CONTROLLERADVANCED EW DRIVEAUTOMATIC MULTISTANDARD SYNCHRONIZATIONDYNAMIC CORRECTION WAVEFORM OUTPUTX-RAY PROTECTION AND SOFT-START & STOP ON HORIZ...

product image

TDA9115 Picture
See larger image
SeekIC No. : 004516916 Detail

TDA9115: Features: GeneralI2C-BUS-CONTROLLED DEFLECTION PROCESSOR DEDICATED FOR LOW-END CRT MONITORSSINGLE SUPPLY VOLTAGE 12VVERY LOW JITTERDC/DC CONVERTER CONTROLLERADVANCED EW DRIVEAUTOMATIC MULTISTANDARD ...

TDA9115 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9115
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

General
I2C-BUS-CONTROLLED
  DEFLECTION PROCESSOR DEDICATED
  FOR LOW-END CRT MONITORS
SINGLE SUPPLY VOLTAGE 12V
VERY LOW JITTER
DC/DC CONVERTER CONTROLLER
ADVANCED EW DRIVE
AUTOMATIC MULTISTANDARD SYNCHRONIZATION
DYNAMIC CORRECTION WAVEFORM OUTPUT
X-RAY PROTECTION AND SOFT-START &
STOP ON HORIZONTAL AND DC/DC DRIVE OUTPUTS

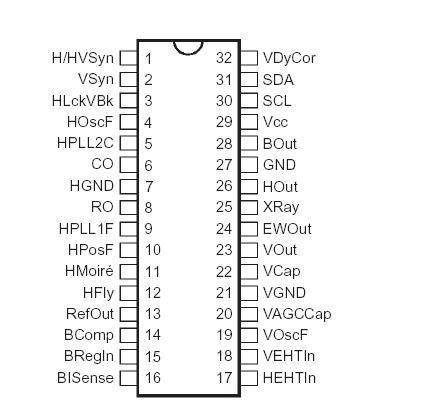

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
Min Max
VCC Supply voltage (pin Vcc) -0.4 13.5 V
V(pin) V(pin)
Pins HEHTIn, VEHTIn, XRay, HOut, BOut
Pins H/HVSyn, VSyn, SCL, SDA
Pins HLckVBk, CO, RO, HPLL1F, HPosF, HVDyCor, BRegIn,
BISense, VAGCCap, VCap, VDyCor, HOscF, VOscF
Pin HPLL2C
Pin HFly

-0.4
-0.4
-0.4
-0.4
-0.4

 VCC
5.5
VRefO
VRefO/2
V RefO
 V
V
V
V
V
VESD
 ESD susceptibility
(human body model: discharge of 100pF through 1.5kW)		 -0.4 2000 V
Tstg Storage temperature -2000 150 °C
Tj Junction temperature -40 150 °C



Description

DESCRIPTION
  The TDA9115 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plasticpackage. This IC controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors. The device only requires very few external components. Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier, video amplifier, OSD controller) the TDA9115 allows fully I2C bus-controlled computer display monitors to be built with a reduced number of external components.
