TDA9112A

Features: General• Advanced I2C-bus controlled deflectionprocessor dedicated for high-end CRT monitors• Single supply voltage 12V• Very low jitter• DC/DC converter controller• Advanced EW drive• Advanced asymmetry corrections• Automatic multistandard synch...

product image

TDA9112A Picture
See larger image
SeekIC No. : 004516914 Detail

TDA9112A: Features: General• Advanced I2C-bus controlled deflectionprocessor dedicated for high-end CRT monitors• Single supply voltage 12V• Very low jitter• DC/DC converter controller...

TDA9112A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9112A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

General
• Advanced I2C-bus controlled deflection
   processor dedicated for high-end CRT monitors
• Single supply voltage 12V
• Very low jitter
• DC/DC converter controller
• Advanced EW drive
• Advanced asymmetry corrections
• Automatic multistandard synchronization
• 2 dynamic correction waveform outputs
• X-ray protection and Soft-start & stop on
   horizontal and DC/DC drive outputs
• I2C-bus status register



Pinout

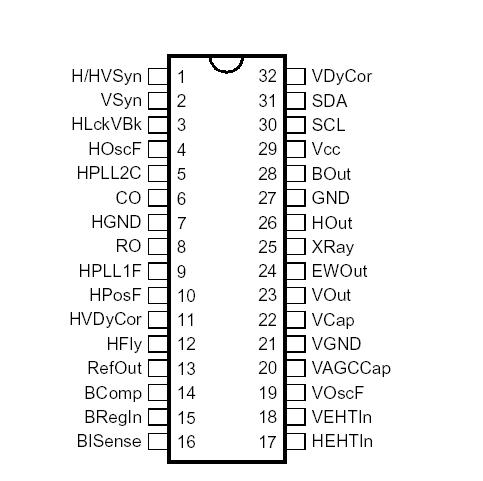

Connection Diagram


Specifications

Symbol Parameter Value Unit
Min Max
VCC Supply voltage (pin Vcc) -0.4 13.5 V
V(pin)
Pins HEHTIn, VEHTIn, XRay, HOut, BOut
Pins H/HVSyn, VSyn, SCL, SDA
Pins HLckVBk, CO, RO, HPLL1F, HPosF, HVDyCor, BRegIn,
BISense, VAGCCap, VCap, VDyCor, HOscF, VOscF
Pin HPLL2C
Pin HFly
 -0.4
-0.4
-0.4
-0.4
-0.4		 VCC
5.5
VRefO
VRefO/2
VRefO		 V
V
V
V
V
VESD ESD susceptibility
(human body model: discharge of 100pF through 1.5kW)		 -2000 2000 V
Tstg Storage temperature -40 150 °C
Tj Junction temperature   150 °C



Description

DESCRIPTION
The TDA9112A is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors. Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier, video amplifier, OSD controller), the TDA9112A allows fully I2C bus-controlled computer display monitors to be built with a reduced number of external components.
