TDA9110

PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 29) 13.5 V VIN Max Voltage on Pin 12Pin 5Pin 16Pin 7Pins 8, 9, 14, 20, 22Pin 15, 18, 23, 24, 25, 26, 28Pins 1, 2, 3, 4, 30, 31 1.84.05.56.48.0VCCVDD V VESD ESD SucceptibilityHuman Body Model, 100pF Dis...

product image

TDA9110 Picture
See larger image
SeekIC No. : 004516911 Detail

TDA9110: PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 29) 13.5 V VIN Max Voltage on Pin 12Pin 5Pin 16Pin 7Pins 8, 9, 14, 20, 22Pin 15, 18, 23, 24, 25, 26, 28Pins...

TDA9110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

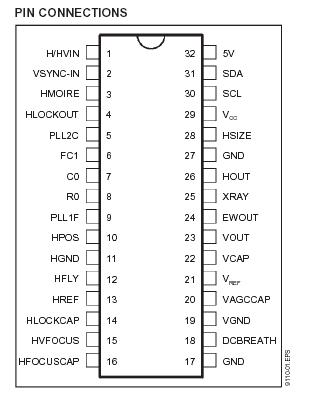

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage (Pin 29) 13.5 V
VIN Max Voltage on Pin 12
Pin 5
Pin 16
Pin 7
Pins 8, 9, 14, 20, 22
Pin 15, 18, 23, 24, 25, 26, 28
Pins 1, 2, 3, 4, 30, 31
 1.8
4.0
5.5
6.4
8.0
VCC
VDD		 V
VESD ESD Succeptibility
Human Body Model, 100pF Discharge through 1.5k
EIAJ Norm, 200pF Discharge through 0		 2
300		 KV
V
Tstg Storage Temperature -40, +150 °C
Tj Max Operating Junction Temperature 150 °C
Toper Operating Temperature 0, +70 °C



Description

  The TDA9110 is a monolithic integrated circuit assembled in 32-pin shrunk dual in line plastic package. This IC controls all the functions related to the horizontal and vertical deflection in multimode or multi-frequencycomputer display monitors. The internal synchro processor, combined with the very powerful geometry correction block make the TDA9110 suitable for very high performance monitors with very few external components. The horizontal jitter level is extremely low. (Typical standard deviation : 300ps@ 31kHz). It is particularly well suited for high-end15" and 17" monitors.
