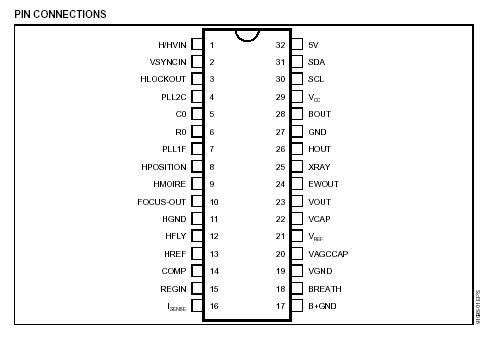

TDA9109S

   The TDA9109S is a monolithic integrated circuit assembled in 32-pin shrink dual in line plastic package. This IC controls all the functions related to the horizontal and vertical deflection in multimode or multi-frequency computer display monitors. The internal sync processor, combined with the very powerful geometry correction block make the TDA9109/S suitable for very high performance monitors, using very few external components. The horizontal jitter level is very low. TDA9109S is particularly well suited for high-end 15" and 17" monitors. Combined with the ST7275 Microcontroller family, TDA9206 (Video preamplifier) and STV942x (On-Screen Display controller) the TDA9109/S allows fully I2C bus controlled computer display monitors to be built with a reduced number of external components.
