TDA9109

PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 29) 13.5 V VIN Max Voltage on Pin 4Pin 9Pin 5Pins 6, 7, 8, 14, 15, 16, 20, 22Pin 10, 18, 23, 24, 25, 26, 28Pins 1, 2, 3, 30, 31 4.05.56.48.0VCCVDD V VESD ESD SucceptibilityHuman Body Model, 100pF Disch...

product image

TDA9109 Picture
See larger image
SeekIC No. : 004516906 Detail

TDA9109: PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 29) 13.5 V VIN Max Voltage on Pin 4Pin 9Pin 5Pins 6, 7, 8, 14, 15, 16, 20, 22Pin 10, 18, 23, 24, 25, 26, 28...

TDA9109 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9109
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

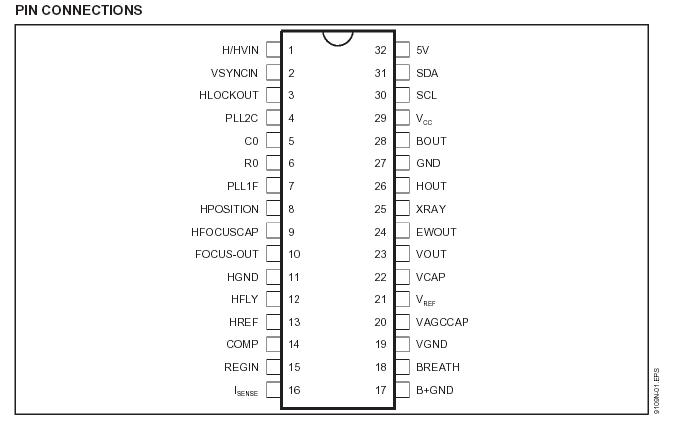

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage (Pin 29) 13.5 V
VIN Max Voltage on Pin 4
Pin 9
Pin 5
Pins 6, 7, 8, 14, 15, 16, 20, 22
Pin 10, 18, 23, 24, 25, 26, 28
Pins 1, 2, 3, 30, 31
 4.0
5.5
6.4
8.0
VCC
VDD		 V
VESD ESD Succeptibility
Human Body Model, 100pF Discharge through 1.5k
EIAJ Norm, 200pF Discharge through 0		 2
300		 KV
V
Tstg Storage Temperature -40, +150 °C
Tj Max Operating Junction Temperature 150 °C
Toper Operating Temperature 0, +70 °C



Description

DESCRIPTION
  The TDA9109/N is a monolithic integrated circuit assembledin 32-pin shrinkdual in lineplasticpackage.This IC controls all the functions related to thehorizontal and vertical deflection in multimode ormulti-frequency computer display monitors.The internal sync processor, combined with thevery powerful geometry correction block make the TDA9109/N suitable for very high performance monitors, using very few external components. The horizontaljitter level is verylow. It is particularly well suited for high-end 15" and 17" monitors. Combined with the ST7275 Microcontroller family, TDA9206 (Video preamplifier) and STV942x (On- Screen Display controller) the TDA9109/N allows fully I2C bus controlled computer display monitors to be built with a reduced number of external components.
