TDA9106

PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 18) 13.5 V VDD Supply Voltage (Pin 39) 5.7 V VIN Max Voltage on Pin 6Pins 15, 21, 22, 23Pin 1Pin 4Pins 3, 33,34,37,38,40,41Pin 16Pins 8, 9, 10, 11, 12, 13, 14, 25, 27, 30 1.8123.64568 VVVVVvv VE...

product image

TDA9106 Picture
See larger image
SeekIC No. : 004516903 Detail

TDA9106: PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 18) 13.5 V VDD Supply Voltage (Pin 39) 5.7 V VIN Max Voltage on Pin 6Pins 15, 21, 22, 23Pin 1Pin 4Pin...

TDA9106 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9106
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

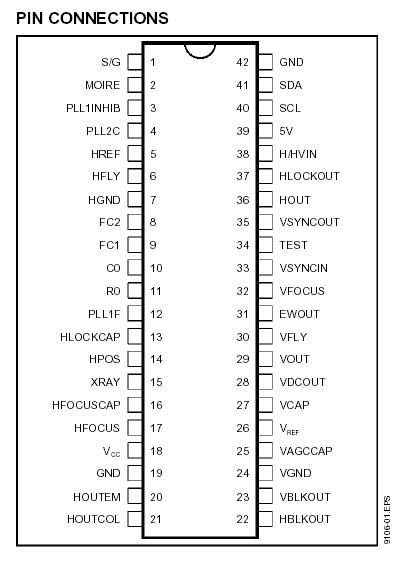

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage (Pin 18) 13.5 V
VDD Supply Voltage (Pin 39) 5.7 V
VIN
Max Voltage on Pin 6
Pins 15, 21, 22, 23
Pin 1
Pin 4
Pins 3, 33,34,37,38,40,41
Pin 16
Pins 8, 9, 10, 11, 12, 13, 14, 25, 27, 30

1.8
12
3.6
4
5
6
8

 V
V
V
V
V
v
v
VESD ESD susceptibility
Human Body Model,100pF Discharge through 1.5k
EIAJ Norm,200pF Discharge through 0
 2
300		 kv
V
Tstg Storage Temperature -40, +150 °C
Tj Junction Temperature +150 °C
Toper Operating Temperature 0, +70 °C



Description

  The TDA9106 is a monolithic integrated circuit assembled in 42 pins shrunk dual in line plastic package. This IC controls all the functions related to the horizontal and vertical deflection in multimodes or multi-frequencycomputer display monitors.
