TDA9105

PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 18) 13.5 V VIN Max Voltage on Pins 4, 15, 28, 29, 31, 33, 38, 39, 41, 42Pin 5Pins 17, 34Pin 16 81.8612 V VESD ESD SucceptibilityHuman Body Model, 100pF Discharge through 1.5k EIAJ Norm, 200pF Discharge...

product image

TDA9105 Picture
See larger image
SeekIC No. : 004516901 Detail

TDA9105: PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage (Pin 18) 13.5 V VIN Max Voltage on Pins 4, 15, 28, 29, 31, 33, 38, 39, 41, 42Pin 5Pins 17, 34Pin 16 81.8612 V ...

TDA9105 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9105
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

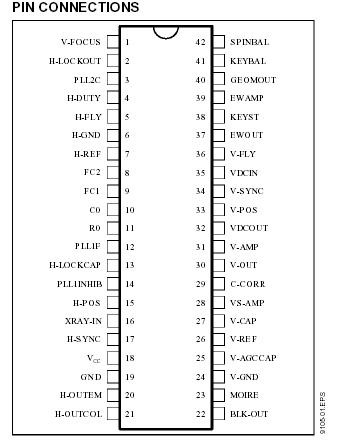

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage (Pin 18) 13.5 V
VIN Max Voltage on Pins 4, 15, 28, 29, 31, 33, 38, 39, 41, 42
Pin 5
Pins 17, 34
Pin 16
8
1.8
6
12
 V
VESD ESD Succeptibility
Human Body Model, 100pF Discharge through 1.5k
EIAJ Norm, 200pF Discharge through 0		 2
300		 KV
V
Tstg Storage Temperature -40, +150 °C
Tj Max Operating Junction Temperature 150 °C
Toper Operating Temperature 0, +70 °C



Description

  The TDA9105 is a monolithic integrated circuit assembled in a 42 pins shrink dual in line plastic packageThis IC controls all the functions related to the horizontal and vertical deflection in multimodes or multisync monitors. his IC, combined with TDA9205 (RGB preamp), STV942x (OSDprocessor),ST727x (micro controller) and TDA817x (vertical booster), allows to realize very simple and high quality multimodes or multisync monitors.
