TDA7560

Common Mode Rejection Ratio (Min) :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Product : Class-AB
Operating Supply Voltage : 18 V
Output Type : 4-Channel Stereo
Available Set Gain : 26 dB
Maximum Power Dissipation : 80000 mW
Package / Case : FLEXIWATT-25
THD plus Noise : 0.015 %
Output Power : 55 W

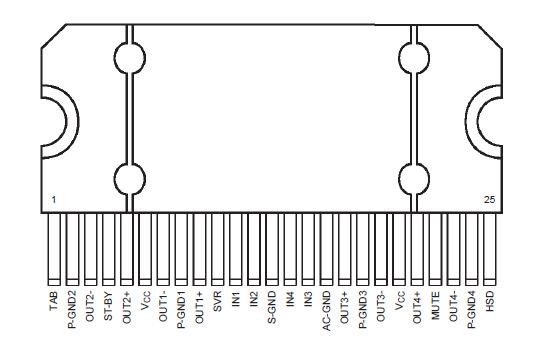

Pinout






Specifications

Symbol	Parameter	Value	Unit
VCC	Operating Supply Voltage	18	V
V CC (DC)	DC Supply Voltage	28	V
V CC (pk)	Peak Supply Voltage (t = 50ms)	50	V
IO	Output Peak Current: Repetitive (Duty Cycle 10% at f = 10Hz) Non Repetitive (t = 100s)	9 10	A A
Ptot	Power dissipation, (Tcase = 70°C)	80	W
Tj	Junction Temperature	150	°C
Tstg	Storage Temperature	55 to 150	°C

Description

The TDA7560 is a breakthrough BCD (Bipolar / CMOS / DMOS) technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high power car radio

The fully complementary P-Channel/N-Channel output structure allows a rail to rail output voltage swing which, combined with high output current and minimised saturation losses sets new power references in the car-radio field, with unparalleled distortion performances.

The TDA7560 is a breakthrough BCD (Bipolar/CMOS/DMOS) technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high power car radio. The features of TDA7560 are: (1)excellent 2 drivingcapability; (2)HI-FI class distortion; (3)low output noise; (4)ST-BY function; (5)mute function; (6)automute at min. supply voltage detection.

The following is about the absolute maximum ratings of TDA7560: (1)Operating Supply Voltage: 18 V; (2)DC Supply Voltage: 28 V; (3)Peak Supply Voltage (t = 50ms): 50 V; (4)Output Peak Current: Repetitive (Duty Cycle 10% at f = 10Hz): 9A, Non Repetitive (t = 100ms): 10A; (5)Power dissipation, (Tcase = 70°C): 80 W; (6)Junction Temperature: 150 °C; (7)Storage Temperature: 55 to 150 °C.

The electrical characteristics of the TDA7560 are: (1)Quiescent Current:120 mA min, 200 mA typ and 320 mA max; (2)Output Offset Voltage: ±80 mV Play Mode; (3)During mute ON/OFF output offset voltage: ±80 mV; (4)Voltage Gain: 25dB min, 26 dB typ and 27 dB max; (5)Channel Gain Unbalance: ±1 dB; (6)Supply Voltage Rejection:50dB min and 70dB typ at f = 100Hz; Vr = 1Vrms; (7)High Cut-Off Frequency: 100KHz min and 300KHz typ at PO = 0.5W; (8)Input Impedance 80 K min, 100 K typ and 120 K max.

Parameters:

Technical/Catalog Information	TDA7560
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	25-Flexiwatt (bent and staggered leads)
Type	Class AB
Output Type	4-Channel (Quad)
Voltage - Supply	8 V ~ 18 V
Packaging	Tube
Features	Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	80W x 4 @ 2 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7560 TDA7560 497 2181 5 ND 49721815ND 497-2181-5
