TDA7540B

Features: · RF AGC generation by RF and IF detection· I/Q mixer for 1st FM IF 10.7MHz with image rejection· Mixer for 2nd IF 450kHz· Internal 450KHz bandpass filter with bandwidth control by ISS· Fully integrated FM-demodulator with spike cancellationApplication· VCO for world tuning range· High p...

product image

TDA7540B Picture
See larger image
SeekIC No. : 004516633 Detail

TDA7540B: Features: · RF AGC generation by RF and IF detection· I/Q mixer for 1st FM IF 10.7MHz with image rejection· Mixer for 2nd IF 450kHz· Internal 450KHz bandpass filter with bandwidth control by ISS· Fu...

TDA7540B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7540B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· RF AGC generation by RF and IF detection
· I/Q mixer for 1st FM IF 10.7MHz with image rejection
· Mixer for 2nd IF 450kHz
· Internal 450KHz bandpass filter with bandwidth control by ISS
· Fully integrated FM-demodulator with spike cancellation


Application

· VCO for world tuning range
· High performance fast PLL for RDS-System
· IF counter for FM and AM with search stop signal
· Quality detector for level, deviation, adjacent channel and multipath
· ISS (Intelligent Selectivity System) for cancellation of adjacent channel and noise influences
· Adjacent channel mute
· Fully electronic alignment
· All functions I2C-Bus controlled


Pinout

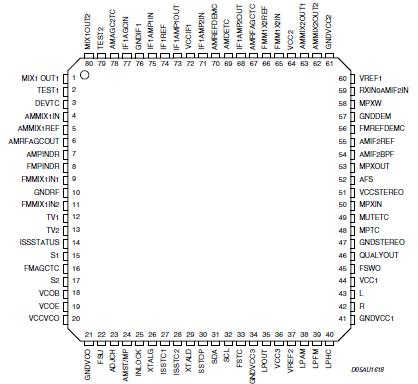

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply voltage 9.5 V
Tamb Ambient temperature -40 to 85 °C
Tstg Storage temperature -55 to 150 °C
VESD ESD protection (Human Body Model) ±1500 V
VESD ESD protection (Machine Model) ±150 V
VESD ESD protection (Change Device Model) ±750 V



Description

The TDA7540B is a high performance tuner circuit for AM/FM car radio. It contains mixer, IF amplifier, demodulator for AM and FM, stereodecoder, quality detection, ISS filter and PLL synthesizer with IF counter on a single chip. Use of BICMOS technology allows the implementation of several tuning functions and a minimum of external components.
