TDA7502

Core :
Program Memory Size :
Number of Programmable I/Os :
Number of Timers :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Package / Case : TQFP-44
Data Bus Width : 24 bit
Maximum Clock Frequency : 50 MHz
Device Million Instructions per Second : 50 MIPs
Data RAM Size : 15 KB
Operating Supply Voltage : - 0.5 V to + 4.6 V


Features:

·24-Bit Fixed-point DSP core delivering up to 50 MIPS
·2x512 x24BitofRAMforX andYdatamemory.
·1536 x 24 Bit of RAM for Program.
·1536 x 24 Bit of Additional RAM memory usable for delay or program
·Serial Audio Interface.
·Debug Port.
·Control Interface for external GPIOs, Interrupts, and RESET.
·SPI and I²C for communication between external micro and DSP. Both master and slave operating modes.
·PLL Clock Oscillator
·5V-tolerant 3V I/O interface

Application

The The TDA7502 IC will interface with an external CODEC chip (i.e. the TDA7531). The CODEC chip contains A/D converters that convert the audio data and send it to the TDA7502 IC for signal processing. The TDA7502 then sends the processed audio data back to the CODEC for D/A conversion. A block diagram of the system is shown in Fig. 1 below.

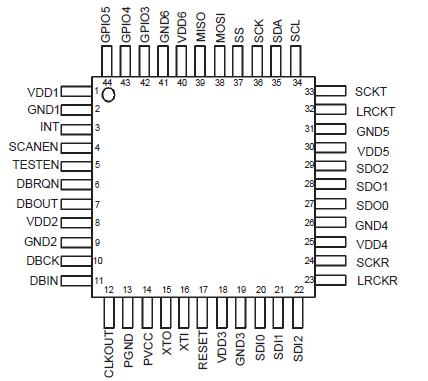

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDDC	Core DC Supply voltage	4.6	V
VDDP	Pads DC Supply voltage	4.6	V
VI,VIN	Digital or analog input voltage	-0.5 to (VDDP +0.5)	V
TOP	Operative temperature range	-40 to 85	°C
TSTG	Storage temperature range (plastic)	-55 to 150	°C

Description

This TDA7502 is a high-performance, fully programmable DSP, suitable for a wide range of applications and particularly for Audio and Sound Processing. It contains a 24-bit 50 MIPS DSP core, several interfaces for control and data, plus a configurable PLL.

The computational power and the memory configuration make this device particularly suitable for in car equalisation. This device will offer the best trade-off between performance and cost when coupled with the TDA7531, or other devices of the same family. A library of sound processing functions of the TDA7502 is available for this device; some of these functions are: parametric equaliser, cross over filters, acoustic delay, dynamic compression, Vol/Bass/Treble/Fader, active equalisation, Stereo Spatial Enhancement.

Parameters:

Technical/Catalog Information	TDA7502
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	44-LQFP
Type	Audio Processor
Packaging	Tray
Applications	Automotive Systems
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7502 TDA7502
