TDA7501

Audio DSPs Digit Car Radio Sig

product image

TDA7501 Picture
See larger image
SeekIC No. : 00311814 Detail

TDA7501: Audio DSPs Digit Car Radio Sig

TDA7501 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7501
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Temperature Range : - 40 C to + 85 C Mounting Style : SMD/SMT
Package / Case : TQFP-44 Packaging : Tray

Description

Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Tray
Package / Case : TQFP-44


Features:

INPUTS:
   - QUASI DIFFERENTIAL STEREO INPUT FORCD
   - DIFFERENTIALSTEREOINPUTS FOR
PHONE,NAVIGATION, FM, AM
   - SINGLE-ENDEDINPUT FOR CASSETTE
   - FOURINDEPENDENTINPUTMULTIPLEXER
ANDGAIN STAGES
   - ENVELOPE-DETECTORFOR AM-NOISEBLANKING
   - MIXINGOF PHONE AND NAVIGATION
   - DC-CONNECTION TO DSP
   - DUAL MPX INPUTS
OUTPUTS:
   - 6 OUTPUTCHANNELS WITHINDEPENDENT VOLUMECONTROL
  - 4MAINOUTPUTCHANNELSWITHADDITIONAL
     INPUT SELECTORFORPHONE AND/OR
     NAVIGATIONORCD
   - OUTPUTSFORUP TO4V rms
   - AC-CONNECTIONFROMDSP
DIGITAL CONTROL:
   - SPI-BUSOR I2C BUS INTERFACE (SELECTABLE)
   - DIRECT MUTE FOR THE OUTPUT STAGES AND/ORHIGH IMPEDANCEMPX MUTE


Pinout

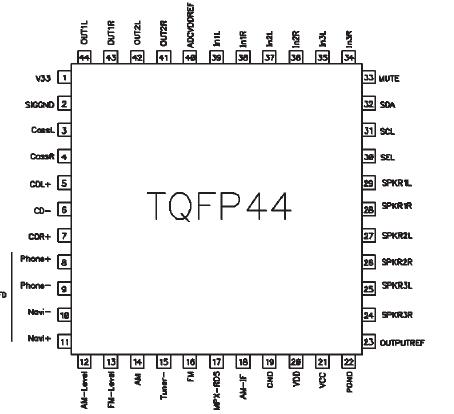

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDDmax Operating Supply Voltage VDD 10.5 V
VSmax Operating Supply Voltage Vs 13.0 V
Tamb Operating Temperature Range -40 to 85 °C
Tstg Storage Temperature Range -55 to 150 °C



Description

The Linedriver handles all analog input- and output- signals for the Digital Carradio Signal Processor TDA7501. The TDA7501 contains four independent input multiplexers to select the sources for the DSP's four AD-converters. Four additional gain stages allow an adaptation to run the ADCs in best S/N condition.

The six outputs of the TDA7501 have independent volume stages with a large dynamic range. Using a 12V-supply the outputs are able to drive up to 4Vrms .




Parameters:

Technical/Catalog InformationTDA7501
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case44-LQFP
TypeCar Signal Processor
PackagingTray
ApplicationsAutomotive Systems
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDA7501
TDA7501
