TDA7500

Core :
Program Memory Size :
Number of Programmable I/Os :
Number of Timers :
Mounting Style : SMD/SMT
Operating Supply Voltage : 3.3 V
Maximum Operating Temperature : + 85 C
Package / Case : TQFP-100
Data RAM Size : 12 KB
Data Bus Width : 24 bit
Maximum Clock Frequency : 43 MHz
Device Million Instructions per Second : 43 MIPs


Features:

FULL SOFTWARE FLEXIBILITY WITH TWO
24X24 BIT DSP CORES
AM/FM PROCESSING
AUDIO-PROCESSING AND SOUND-PROCESSING
HARDWARE RDS FILTER, DEMODULATOR
& DECODER
INTEGRATED CODEC
IIC AND SPI CONTROL INTERFACES
SPI DEDICATED TO DISPLAY MICRO
6 CHANNEL SERIAL AUDIO INTERFACE SAI
SPDIF RECEIVER WITH SAMPLE RATE
CONVERTER
EXTERNAL MEMORY INTERFACE
DOUBLE DEBUG INTERFACE
ON-CHIP PLL
5V-TOLERANT 3V I/O INTERFACE
MULTIFUNCTION GENERAL PURPOSE I/O PORTS

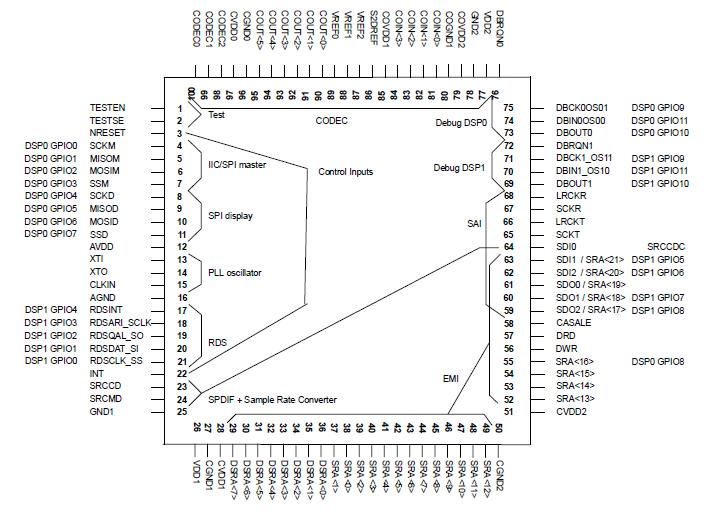

Pinout




Specifications

Symbol	Parameter		Value	Unit
VDD VCC	Power supplies	Digital Analog	4.6 4.6	V V
	Analog Input Voltage		-0.5 to (VDD+0.5)	V
	Digital Input Voltage		-0.5 to (VCC+0.5)	V
Tamb	Operating Temperature Range		-40 to 85	°C
Tstg	Storage Temperature		-55 to 150	°C

Warning: Operation at or beyond these limit may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.


Description

The TDA7500 is an integrated circuit implementing a fully digital, integrated and advanced solution to perform the signal processing in front of the power amplifier and behind the AM/FM tuner or any other audio sources. The chip integrates two 43 MIPs DSP cores: one for stereo decoding, noise blanking, weak signal processing and multi- path detection and one for sound processing. An I2C/SPI interface is implemented for control and communication with the main micro.

A separate SPI is available to interface the display micro.

The DSP cores of the TDA7500 are integrated with their associated data and program memories. The peripherals and interfaces I2C, SPI, Serial Audio Interface (SAI), PLL Oscillator, External Memory Interface, (EMI), General Purpose I/O register (Port A) and the D/A registers are connected to and controlled by DSP0, whereas the A/D registers, the SPDIF and the General Purpose I/O register (Port B) are connected to and controlled by DSP1. The Debug and Test Interface are connected to both DSP cores.

The TDA7500 is supposed to be used in kit with the TDA7501 or any other device of the same family. Thanks to the serial audio interface also digital sources can be processed and a direct output to a digital bus is also available.
