TDA7496

Common Mode Rejection Ratio (Min) :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
Available Set Gain : 30 dB
Product : Class-AB
Operating Supply Voltage : 12 V, 15 V, 18 V, 24 V, 28 V
THD plus Noise : 0.4 %
Package / Case : Multiwatt-15
Maximum Power Dissipation : 15000 mW
Output Power : 5.5 W


Features:

`5+5W OUTPUT POWER
   R<sub>L</sub> = 8 @THD= 10% V<sub>CC</sub> = 22V
`ST-BY AND MUTE FUNCTIONS
`LOW TURN-ON TURN-OFF POP NOISE
`LINEAR VOLUME CONTROL DC COUPLED WITH POWEROP. AMP.
`NO BOUCHEROT CELL
`NO ST-BY RC INPUT NETWORK
`SINGLE SUPPLY RANGING UP TO 35V
`SHORT CIRCUIT PROTECTION
`THERMAL OVERLOAD PROTECTION
`INTERNALLY FIXED GAIN
`SOFT CLIPPING
`VARIABLE OUTPUT AFTER VOLUME CONTROL CIRCUIT
`MULTIWATT 15 PACKAGE

Application

The recommended values of the external components are those shown on the application circuit of figure 1a. Different values can be used, the following table can help the designer.

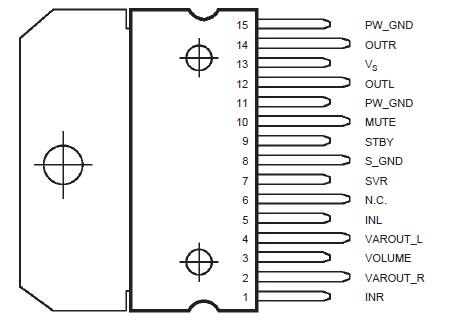

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	35	V
VIN	Maximum Input Voltage	8	Vpp
Ptot	Total Power Dissipation (Tamb = 80°C)	15	W
Tamb	Ambient Operating Temperature	0 to 70	°C
Tstg, Tj	Storage and Junction Temperature	-40 to 150	°C
V3	Volume CTRL DC voltage	7	V

Description

The TDA7496 is a stereo 5+5W class AB power amplifier assembled in the @ Multiwatt 15 package, specially designed for high quality sound, TV applications.

Features of the TDA7496 include linear volume control, Stand-by and mute functions.

Parameters:

Technical/Catalog Information	TDA7496
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	10 V ~ 32 V
Packaging	Tube
Features	Depop, Mute, Short-Circuit and Thermal Protection, Standby, Volume Control
Max Output Power x Channels @ Load	5.5W x 2 @ 8 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7496 TDA7496 497 8872 5 ND 49788725ND 497-8872-5
