TDA7482

Common Mode Rejection Ratio (Min) :
Supply Current :
Product : Class-D
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.1 %
Mounting Style : Through Hole
Output Power : 25 W
Available Set Gain : 30 dB
Output Type : 1-Channel Mono
Package / Case : Multiwatt-15
Operating Supply Voltage : 28 V
Maximum Power Dissipation : 35000 mW


Features:

`25W OUTPUT POWER:
     R<sub>L</sub> = 8/4; THD = 10%
`HIGH EFFICIENCY
`WIDE SUPPLY VOLTAGE RANGE (UP TO ±25V)
`SPLIT SUPPLY
`OVERVOLTAGEPROTECTION
`ST-BY AND MUTE FEATURES
`SHORT CIRCUIT PROTECTION
`THERMAL OVERLOAD PROTECTION

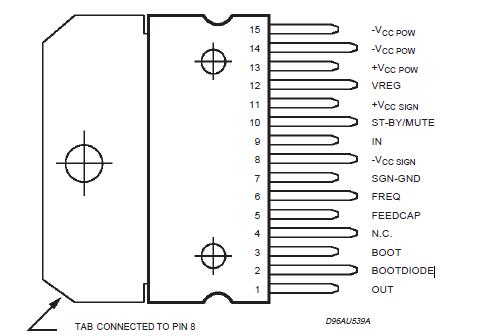

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	±28	V
Ptot	Power Dissipation Tcase = 70°C	35	W
Tstg, Tj	Storage and Junction Temperature	40 to 150	°C
VFREQ	Maximum Voltage Across RF (pin6)	8	V
Top	Operating Temperature Range	0 to 70	°C
ESD	Max ESD on Pins	±1.2	KV

Description

The TDA7482 is an audio class-D amplifier assembled in Multiwatt15 package specially designed for high efficiency applications mainly for TV and Home Stereo sets.
