Product Details

Description

Features:

· 4 BUILT-IN POWER BRIDGES (4 x 0.6A)
· NO EXTERNALCOMPONENTS
· SINGLEPOWER SUPPLY
· WIDE SUPPLY VOLTAGE RANGE (6 TO 15V)
· 5V REGULATOR DRIVER FOR EXTERNAL
PASS TRANSISTOR WITH FOLD-BACK
SHORT CIRCUIT PROTECTION
· ADJUSTABLE REGULATOR (2.0 TO 3.6V @ 200mA) WITH SHORT CIRCUIT PROTECTION

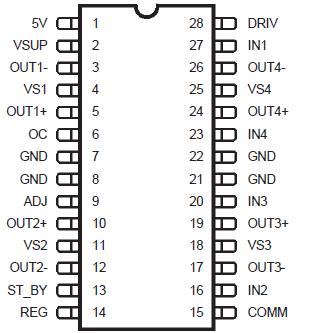

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_SUP	DC Supply Voltage	18	V
V_S	Channel Power Supply	6	V
T_op	Operating Temperature Range	25 to + 80
T_J	Maximum Junction Temperature	150

Description

This TDA7473 is a quad power driver circuit in BTL configuration, intended for use as a power driver for servo systems with a single supply.

It's specially dedicated to compact disc players and it's capable of driving focus & tracking actuators sledge & spindle motors.

The regulators of the TDA7473 are mainly used to have a 5V supply for the power part and a lower programmable voltage for the logic circuits.
