TDA7466

Audio DSPs Digitally Controlled

product image

TDA7466 Picture
See larger image
SeekIC No. : 00311887 Detail

TDA7466: Audio DSPs Digitally Controlled

TDA7466 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7466
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Temperature Range : + 85 C Mounting Style : Through Hole
Package / Case : PDIP-42 Packaging : Tube

Description

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Operating Temperature Range : + 85 C
Mounting Style : Through Hole
Package / Case : PDIP-42


Features:

· 1 STEREOINPUT
· INPUT ATTENUATION CONTROL IN 0.5dB STEP
· TREBLE MIDDLE AND BASS CONTROL
· VOICE CANCELLER IS AVAILABLE
· STEREO SRS SURROUND SOUND WITH
    CENTER & SPACE CONTROL IS AVAILABLE
· THREE STANDARD SURROUND MODES
    ARE AVAILABLE:
   - MUSIC IN 4 DIFFERENT SELECTABLE RESPONSES
   - MOVIE ANDSIMULATED IN 256
     DIFFERENT SELECTABLE RESPONSES
· 2 SPEAKERSOUTPUTS
   - INDEPENDENT ATTENUATORS IN 1dB
     STEPFOR BALANCEFACILITY
   - ZEROCROSSINGATTENUATIONAVAILABLE
   - AVAILABILITYOF LOUDSPEAKERS
     EQUALIZATION FIXEDBY EXTERNAL COMPONENTS
   - INDEPENDENT MUTE FUNCTION
· 2 RECORD OUTPUTS
   - INDEPENDENT ATTENUATORS IN 1dB
     STEPFOR BALANCEFACILITY
   - MUXAVAILABLE FORPROCESSESSIGNAL SELECTION
   - INDEPENDENT MUTE FUNCTION
· ALL FUNCTIONS PROGRAMMABLE VIA SERIAL BUS

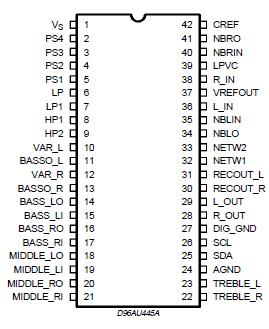

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VS
 Operating Supply Voltage
11
V
Tamb Operating Ambient Temperature
-10 to 85
Tstg Storage Temperature Range
-55 to +150



Description

The TDA7466 is a volume tone (bass middle and treble) balance (Left/Right) processors with stereo SRS and voice canceller for quality audio applications in car radio, Hi-Fi, TV systems.

It reproduces SRS (Sound Retrieval System) sound by external components and surround sound by using phase shifters and a signal matrix. The AC signal setting of the TDA7466 is obtained by resistor networks and switches combined with operational amplifiers according to the SRS laboratories specification. Control of all the functions is accomplished by serial bus.

Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.




Parameters:

Technical/Catalog InformationTDA7466
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Mounting TypeThrough Hole
Package / Case42-SDIP (600 mil)
TypeAudio Processor
PackagingTube
ApplicationsAutomotive Systems, HI-FI
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDA7466
TDA7466
