SeekIC No. : 00475267 Detail

TDA7463D: Multimedia Misc Lo Vltg TONE CONTROL

TDA7463D Data Sheet

Get Latest Price

Part Number:: TDA7463D
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Type :	Audio Processor	Package / Case :	SOIC-16
Packaging :	Tube

Description

Number of Channels :
Conversion Rate :
Resolution :
Package / Case : SOIC-16
Packaging : Tube
Type : Audio Processor

Features:

1 STEREO INPUT
1 STEREO OUTPUT
TREBLE BOOST
BASS CONTROL
BASS AUTOMATIC LEVEL CONTROL
VOLUME CONTROL IN 1dB STEPS
MUTE
STAND-BY FUNCTION SOFTWARE CONTROLLED
ALL FUNCTION ARE PROGRAMMABLE VIA SERIAL BUS

Pinout

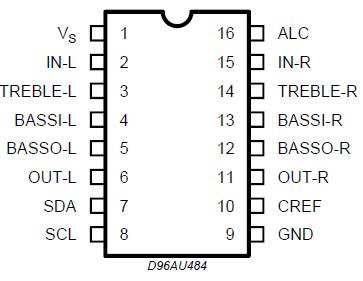

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Operating Supply Voltage	5	V
T_amb	Operating Ambient Temperature	0 to 70	°C
T_stg	Storage Temperature Range	-55 to 150	°C

Description

The TDA7463D is a volume tone (bass and treble) processor for quality audio applications in Low voltage supply portable systems.

Bass ALC (Automatic Level Control) function can be adjusted by a dedicated pin. The control of all the functions is accomplished by serial bus.

The AC signal setting of the TDA7463D is obtained by resistor networks and switches combined with operational amplifiers. Thanks to the used BIPOLAR/CMOS Technology,

Low Distortion, Low Noise and DC stepping are obtained.obtained.

Parameters:

Technical/Catalog Information	TDA7463D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	16-SOIC (7.5mm Width)
Type	Audio Processor
Packaging	Tube
Applications	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7463D TDA7463D
