SeekIC No. : 00311888 Detail

TDA7463AD: Audio DSPs Lo Vltg TONE CONTROL

TDA7463AD Data Sheet

Get Latest Price

Part Number:: TDA7463AD
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA7000 evaluate
Application*Where application information is given, it is advisory and does not form part of the s...
TDA7010T evaluate
ApplicationThese products are not designed for use in life support appliances, devices, or systems...
TDA7010T3AA evaluate
IC FM RADIO 16-SOIC

Product Details

Quick Details

Operating Supply Voltage :	2.4 V	Supply Current :	4 mA
Operating Temperature Range :	- 40 C to + 85 C	Mounting Style :	SMD/SMT
Package / Case :	SSOP-20	Packaging :	Tube

Description

Mounting Style : SMD/SMT
Packaging : Tube
Operating Temperature Range : - 40 C to + 85 C
Package / Case : SSOP-20
Operating Supply Voltage : 2.4 V
Supply Current : 4 mA

Features:

2 STEREO INPUT
1 STEREO OUTPUT
TREBLE BOOST
BASS CONTROL
BASS AUTOMATIC LEVEL CONTROL
VOLUME CONTROL IN 1dB STEPS
MUTE
STAND-BY FUNCTION SOFTWARE
CONTROLLED
ALL FUNCTION ARE PROGRAMMABLE VIA
SERIAL BUS

Pinout

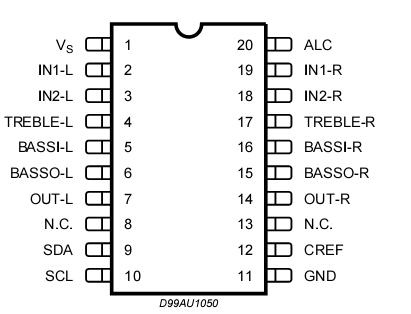

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	5	V
Tamb	Operating Ambient Temperature	-10 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

The TDA7463AD is a volume tone (bass and treble) processor for quality audio applications in Low voltage supply portable systems.

Bass ALC (Automatic Level Control) function can be adjusted by a dedicated pin.

The control of all the functions is accomplished by serial bus.

The AC signal setting of the TDA7463AD is obtained by resistor networks and switches combined with operational amplifiers.

Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.

Parameters:

Technical/Catalog Information	TDA7463AD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-SSOP
Type	Audio Processor
Packaging	Tray
Applications	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7463AD TDA7463AD
