TDA7461N

Features:

*HIGH PERFORMANCE SIGNAL PROCESSOR FOR CAR RADIO SYSTEMS
*DEVICE INCLUDES AUDIO PROCESSOR,
STEREO DECODER, NOISEBLANKER AND
MULTIPATH DETECTOR
*NO EXTERNAL COMPONENTS REQUIRED

*FULLY PROGRAMMABLE VIA I ² C BUS
*LOW DISTORTION
*LOW NOISE

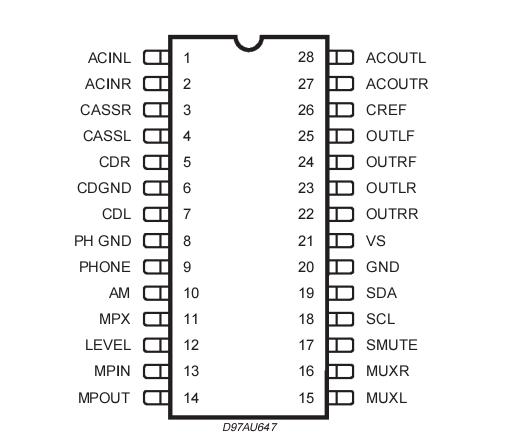

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7461N is a high performance signal processor specifically designed for car radio applications.
The device includes a complete audio processor and a stereo decoder with noise blanker,
stereoblend and all signal processing functions necessary for state-of-the-art as well as future carradio systems.
Switched-capacitors design technique allows to
obtain all these features without external components or adjustments. This means that higher
quality and reliability walks alongside an overall cost saving.
The CSP is fully programmable by I ² C bus interface allowing to customize key device parameters
and especially filter characteristics of the TDA7461N.
The BICMOS process combined with the optimized signal processing assure low noise and low distortion performances.
