TDA7451

Audio Amplifiers Car Power Amplifier

product image

TDA7451 Picture
SeekIC No. : 00309857 Detail

TDA7451: Audio Amplifiers Car Power Amplifier

floor Price/Ceiling Price

Part Number:
TDA7451
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Power : 32 W
Output Type : 2-Channel Stereo or 4-Channel Stereo Available Set Gain : 26 dB
THD plus Noise : 0.06 % Operating Supply Voltage : 18 V
Supply Current : 4 A Maximum Power Dissipation : 55000 mW
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : FLEXIWATT-25 Packaging : Tube

Description

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
THD plus Noise : 0.06 %
Product : Class-AB
Operating Supply Voltage : 18 V
Available Set Gain : 26 dB
Package / Case : FLEXIWATT-25
Output Type : 2-Channel Stereo or 4-Channel Stereo
Supply Current : 4 A
Output Power : 32 W
Maximum Power Dissipation : 55000 mW


Features:

*HIGH UTPUT OWER APABILITY:
4 x9.5W OR2 x32W/4  MAX
4 x8.5W OR2 x28W/4 EIAJ
4 x7W OR2 x22W/4  @14.4V,1KHz;10%
*MINIMIZED XTERNAL OUNT
- NO NEED OF DECOUPLING CAPACITORS
- NO NEED OF BOOTSTRAP CAPACITOR
- NO NEED OF EXTERNAL COMPENSATION
- INTERNALLY FIXEDGAIN(20dB)
*POP-FREEAUDIO SECTION
*ST-BY FUNCTION(C-MOS)
*MUTE FUNCTION (C-MOS)
*CLIP DETECTOR, THERMAL WARNING,
SHORT CIRCUIT DE TECTION
*BUILT-IN VOL TAGE REGULATORS:
- 5V@ 150mA WITH RESET
- 5V@ 500mA WITH ST-BY
- 8.5V@ 200mA WITHST-BY
*REGULATORS DIAGNOSTIC FEATURE: UNDERVOLTAGE, 8.5V DROP SENSE, SHORT
CIRCUIT, LOAD DUMP, OVER-TEMPERA-TURE



Pinout

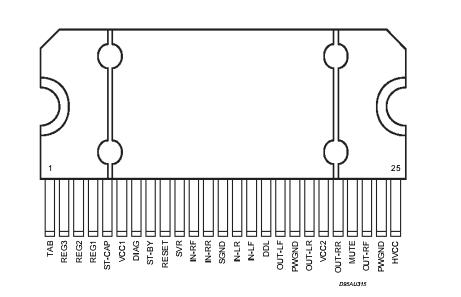

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VS DC Supply Voltage 28 V

VOP
Operating SupplyVoltage 18 V
VPEAK Peak SupplyVoltage (t = 50ms) 50 V
IO Audio OutputPeak Current (non repetitivet =100s) 4 A
Audio OutputPeak Current (repetitive f > 10Hz) 3 A
IO Voltage Regulators Output Current internallylimited
Ptot Power Dissipation(Tcase =85°C)
55 W
Tstg ,Tj Storage and Junction Temperature Range -40 to 150
Vout Output Voltages (DIAG, RESET) 7 V
Vin Input Voltages(ST-BY, MUTE) 18 V
RESR Output capacitor series resistance 0.2 to 10



Parameters:

Technical/Catalog InformationTDA7451
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case25-Flexiwatt (bent and staggered leads)
TypeClass AB
Output Type2-Channel (Stereo) or 4-Channel (Quad)
Voltage - Supply-
PackagingTube
FeaturesDepop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load32W x 2 @ 4 Ohm; 9.5W x 4 @ 4 Ohm
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDA7451
TDA7451
