TDA7443D

Features:

 *INPUT MULTIPLEXER
- 5 STEREO INPUTS
- SELECTABLE INPUT GAIN FOR OPTIMAL
ADAPTATION TO DIFFERENT SOURCES

 *ONE STEREO OUTPUT

 * AGC

 * TREBLE AND BASS CONTROL IN 2.0dB
STEPS

 * VOLUME CONTROL IN 1.0dB STEPS

 *TWO SPEAKER ATTENUATORS:
- TWO INDEPENDENT SPEAKER CONTROL
IN 1.0dB STEPS FOR BALANCE FACILITY
- INDEPENDENT MUTE FUNCTION

 *TWO SURROND MODES AVAILABLE
- MUSIC
PSEUDO STEREO

 *ALL FUNCTION ARE PROGRAMMABLE VIA
SERIAL BUS

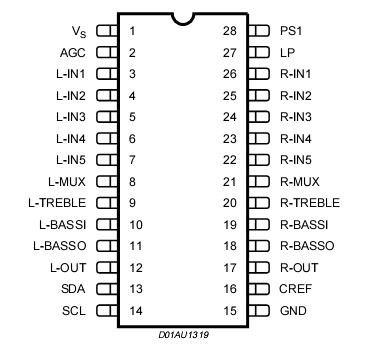

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-10 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

The TDA7443D is a volume tone (bass and treble) balance (Left/Right) processor for quality audio applications in Hi-Fi systems.
Selectable input gain is provided. Control of all the functions of the TDA7443D is accomplished by serial bus.
The AC signal setting is obtained by resistor net-works and switches combined with operational amplifiers.
Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.
