TDA7435

Features:

*INPUT
   - FOUR HIGH PASS CHANNELS
   - TWO AUX STEREO CHANNELS
*VOLUME CONTROL IN 1dB STEPS WITH
   GAIN UP TO 15dB
*SOFTMUTE AND DIRECT MUTE
*FOUR AUXILIARY CHANNELS:
   - TWO SPEAKERSCONTROL IN 1dB STEP
   - TWO CHANNELS MULTIPLEXEDWITH
   THEHIGH PASS CHANNELS
*ALL FUNCTIONS PROGRAMMABLE VIA SERIAL I ² CBUS

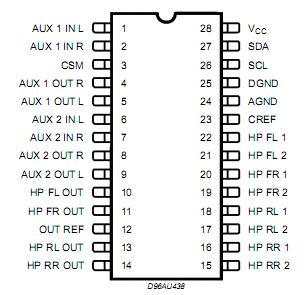

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	10.5	V
Tamb	Operating Ambient Temperature	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

* The audioprocessor TDA7435 is an upgrade of the TDA731X audioprocessor family.
* Due to a highly linear signal processing, using CMOS-switching techniques instead of standard
     bipolar multipliers, very low distortion and very low noise are obtained.
* A second programmable high pass filtering provides the loudspeakers equalization.
*The soft Mute function is implemented andcan be activated in two ways:
      1 Via serial bus (Mute byte, bit D0)
      2 Directly on pin 3 through an I/O line of the microcontroller
*Very low DC stepping of the TDA7435 is obtained by use of a BICMOS technology.
