Product Details

Description



Features:

*TWO STEREO AND ONE MONO INPUTS
CONTROLLED
*MUTE FUNCTION (SOFTWARE AND HARDWARE)
*VOLUMECONTROL IN1dB STEP
*FOUR SPEAKER ATTENUATORS:
Independent attenuation control
Independent mute function
*ALL FUNCTIONS PROGRAMMABLE VIA I 2 C BUS



Pinout

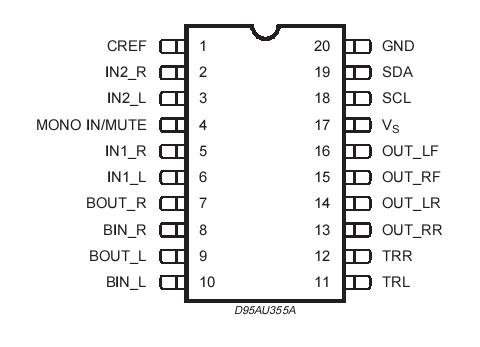

  Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Operating Supply Voltage 10.2 V
Tamb Operating Temperature Range -40 to 85 °C
Tstg Storage Temperature Range -55 to +150 °C



Description

The TDA7433is a volume,tone(bass and treble) balance (Left/Right) processor for quality audio applications in car radioand Hi-Fi systems.
Control is accomplished by serial bus microprocessor interface.
The AC signal setting is obtained by resistor net-works and switches combined with operational amplifiers.

Thanks to the advanced BIPOLAR/CMOS Technology of the TDA7433, the external components have been reduced.
