TDA7427

Features: *ON-CHIP REFERENCE OSCILLATOR AND PROGRAMMABLE IF COUNTER*VHF INPUT AND PRECOUNTER FOR FRE- QUENCIES UP TO 290MHz (SUITABLE FOR DAB APPLICATION)*HF INPUT FOR FREQUENCIES UP TO 64MHz (SHORTWAVE BAND)*IN-LOCK DETECTOR FOR SEARCH/STOP STATION FUNCTION STAND-BY MODE FOR LOW POWER CON-SUMPTIO...

product image

TDA7427 Picture
See larger image
SeekIC No. : 004516616 Detail

TDA7427: Features: *ON-CHIP REFERENCE OSCILLATOR AND PROGRAMMABLE IF COUNTER*VHF INPUT AND PRECOUNTER FOR FRE- QUENCIES UP TO 290MHz (SUITABLE FOR DAB APPLICATION)*HF INPUT FOR FREQUENCIES UP TO 64MHz (SHORT...

TDA7427 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7427
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*ON-CHIP REFERENCE OSCILLATOR AND
   PROGRAMMABLE IF COUNTER
*VHF INPUT AND PRECOUNTER FOR FRE-
   QUENCIES UP TO 290MHz (SUITABLE FOR
   DAB APPLICATION)
*HF INPUT FOR FREQUENCIES UP TO
   64MHz (SHORTWAVE BAND)
*IN-LOCK DETECTOR FOR SEARCH/STOP
   STATION FUNCTION
   STAND-BY MODE FOR LOW POWER CON-
   SUMPTION
*HIGH CURRENT SOURCE FOR 0.5ms
   LOCK-IN TIME
*DIGITAL PORT EXTENSION WITH TWO
   OUTPUTS FOR FLEXIBILITY IN APPLICA-
   TION
*FULLY PROGRAMMABLE BY I 2 C BUS


Pinout

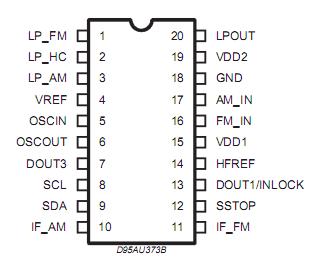

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD1 Supply Voltage - 0.3 to + 7 V
VDD2 Supply Voltage - 0.3 to + 11 V
Ptot Total Power Dissipation 300 mW
Tstg Storage Temperature 55 to + 150
Tamb Ambient Temperature -40 to + 85



Description

The TDA7427 is a PLL frequency synthesizer with an additional IF counting system that performs all the functions needed in a complete PLL radio tuning system for conventional and high speed RDS tuners. The device has dedicated outputs for IN-LOCK detection and Search/Stop station.
