TDA7412

Features:

* 3 STEREO INPUTS

*3 MONO INPUTS

*DYNAMIC-COMPRESSION-STAGE FOR CD

 *SOFTSTEP-VOLUME

*BASS, TREBLE AND LOUDNESS CONTROL

*VOICE-BAND-FILTER

* DIRECT MUTE AND SOFTMUTE

* INTERNAL BEEP

 *FOUR INDEPENDENT SPEAKER-OUTPUTS

 *STEREO SUBWOOFER OUTPUT

*INDEPENDENT SECOND SOURCE-
SELECTOR

*FULL MIXING CAPABILITY

*PAUSE DETECTOR

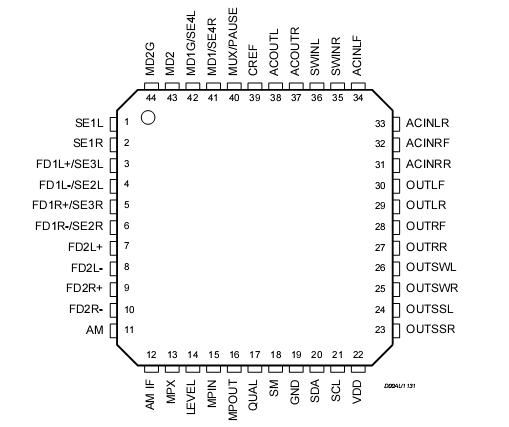

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7412 includes a high performance audio processor and a stereo decoder-noise blanker combination with the whole low frequency signal processing necessary for state-of-the-art as well as future carradios.  The digital control allows a programming in a wide range of all the filter characteristics.  Also the stereodecoder part offers several possibilities of programming especially for the adaptation to different IF-devices.
