TDA7411

Features:

 *FULLY INTEGRATED SIGNAL PROCESSOR
OPTIMIZED FOR CAR RADIO
APPLICATIONS
 *FULY PROGRAMMABLE BY I² C BUS

 *INCLUDES AUDIOPROCESSOR, STEREO-DECODER WITH NOISE BLAMKER AND
MULTIPATH DETECTOR

 *SOFTMUTE FUNCTION PROGRAMMABLE ROLL-OFF
COMPENSATION

 *NO EXTERNAL COMPONENTS

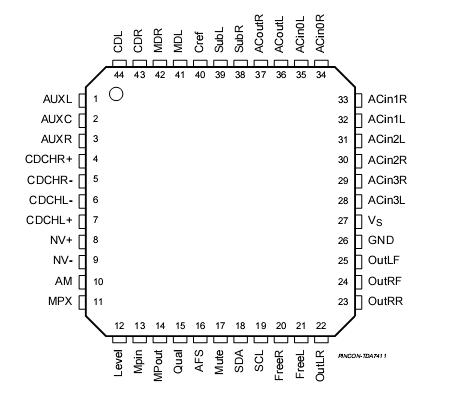

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7411 is the successor of the TDA7407 in the CSP family introduced by the TDA7460/61. It uses the same innovative concepts and design technologies allowing fully software programmability through I²C bus and overall cost optimization for the system designer.
The TDA7411 includes a three band audio processor with extended configurable input and output stages and absence of external components for filter settings, a last generation stereo decoder with multi path detector and a sophisticated stereo blend, high cut control and noise cancellation circuitry.
Strength points of the CSP approach are flexibility and overall cost/room saving in the application, combined with high performances.
