Product Details

Description

Features:

* 4 STEREO INPUTSSOFTSTEP-VOLUME

*BASS, TREBLE AND LOUDNESS CONTROL

*DIRECT MUTE AND SOFTMUTE

*INTERNAL BEEP

*FOUR INDEPENDENT SPEAKER-OUTPUTS

*SUBWOOFER STEREO OUTPUT DIGITAL CONTROL:

* I² C-BUS INTERFACE

* AUDIO-FILTER CHARACTERISTICS
PROGRAMMABLE

Pinout

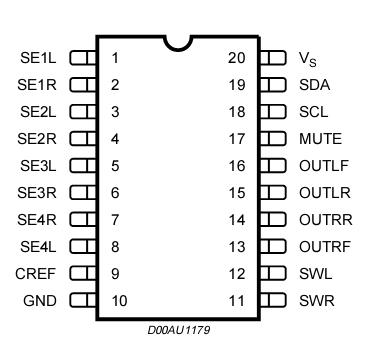

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.8	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7409 is a high performance signal processor specificall designed for car radio applications.
The TDA7409 includes a high performance audioprocessor with fully integrated audio filters. The digital control allows a programming in a wide range of all the filter characteristics. By the use of a BICMO S-process and a linear signal processing low distortion and low noise are obtained.
