Product Details

Description

Features:

* 4 STEREO INPUTS
* 4 MONO INPUTS
* VOLUME CONTROL
*7 BAND EQUALIZER FILTER CONTROL
* HIGH PASS FILTER FOR SUBWOOFER
APPLICATION
*DIRECT MUTE AND SOFT MUTE
* INTERNAL BEEP GENERATION
* 4 INDEPENDENT SPEAKER OUTPUTS
* SOFT STEP SPEAKER CONTROL
* SUBWOOFER OUTPUT
*7 BAND SPECTRUM ANALYZER
*FULL MIXING CAPABILITY
* PAUSE DETECTOR

Pinout

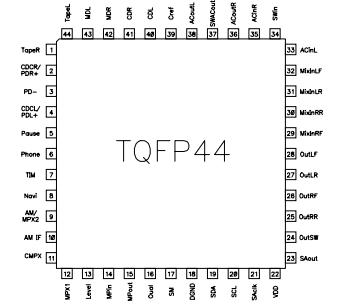

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	V

Description

The TDA7406T includes a high performance audio processor with 7 bands equalizer and spectrum analyzer plus a stereo decoder-noiseblanker. The whole low frequency signal processing necessary for state-of-the-art as well as future car radios is therefore provided. The digital control allows a full programming not only of the audioprocessor and filter characteristics of the TDA7406T but also in the stereodecoder part especially for the adaptation to different IF-devices.
