TDA7404D

Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Operating Temperature Range : - 40 C to + 85 C
Package / Case : SO-28


Features:

*4 STEREO INPUTS

*1 MONO INPUTS

*SOFTSTEP-VOLUME

*BASS, TREBLE AND LOUDNESS CONTROL

*DIRECT MUTE AND SOFTMUTE

*INTERNAL BEEP

*FOUR INDEPENDENT SPEAKER-OUTPUTS

*DIGITAL CONTROL:

*I²C-BUS INTERFACE

*AUDIO-FILTER CHARACTERISTICS
PROGRAMMABLE

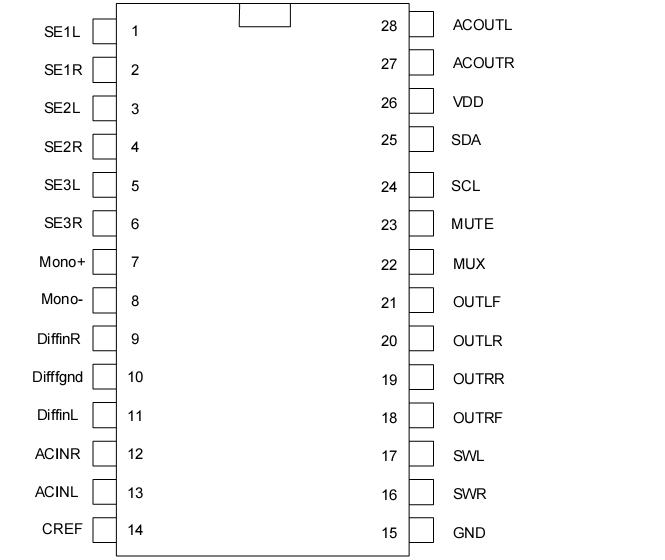

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.8	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7404D is a high performance signal processor specificall designed for car radio applications.
The device includes a high performance audio processor with fully integrated audio filters.  The digital
control allows a programming in a wide range of all the filter characteristics of the TDA7404D. By the use of a BICMOS-
process and a linear signal processing low distortion and low noise are obtained.


Parameters:

Technical/Catalog Information	TDA7404D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	28-SOIC (7.5mm Width)
Type	Car Signal Processor
Packaging	Tube
Applications	Automotive Systems
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7404D TDA7404D
