TDA7403

Features:

*DEVICE INCLUDES AUDIO PROCESSOR,
STEREO DECODER AND NOISEBL ANKER
*HIGH PERFORMANCE SIGNAL PROCESSOR WITH BASIC FUNCTIONS
*AM,FM,MPX AND CASSETTE INPUTS
*NO EXTERNAL COMPONENTS REQUIRED
*FULLY PROGRAMMABLE VIA I ²C BUS
*LOW DISTORTION AND NOISE

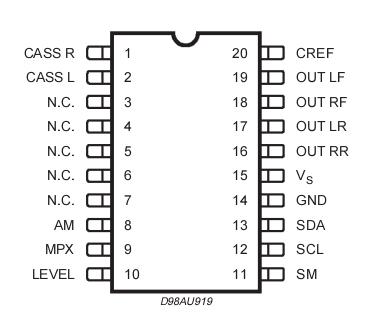

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7403 is a high performance signal processor specifically designed for car radio applications focused on the low-end market.
The device includes a complete audio processor and a stereo decoder with noise blanker.
Switched-capacitors design technique allows to obtain all these features without external components or adjustments. Using TDA7403 results is in a very performant low-cost signal processing application
The TDA7403 is fully programmable by I ² C bus interface allowing to customize key device parametersand especially filter  characteristics.
The BICMOS process combined with the optimized signal processing assure low noise and low distortion performances.
