TDA7402

Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Tray
Package / Case : TQFP-44


Features:

*3 STEREO INPUTS

* 3 MONO INPUTS
*DYNAMIC-COMPRESSION-STAGE FOR CD
*SOFTSTEP-VOLUME
*BASS, TREBLE AND LOUDNESS CONTROL VOICE-BAND-FILTER
*DIRECT MUTE AND SOFTMUTE
*INTERNAL BEEP

*FOUR INDEPENDENT SPEAKER-OUTPUTS
*STEREO SUBWOOFER OUTPUT
*INDEPENDENT SECOND SOURCESELECTOR
*FULL MIXING CAPABILITY
*PAUSE DETECTOR

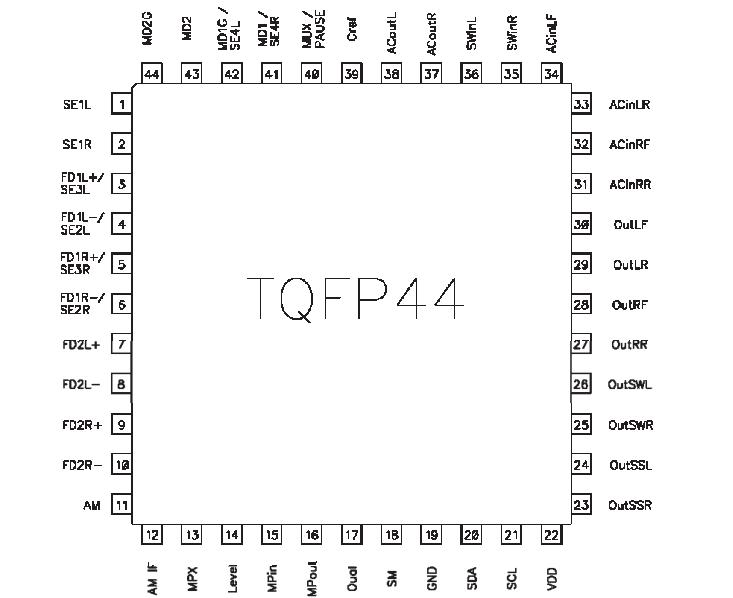

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7402 includes a high performance audio processor and a stereo decoder-noise blanker combination with the whole low frequency signal processing necessary for state-of-the-art as well as future carradios. The digital control allows a programming in a
wide range of all the filter characteristics. Also the stereo decoder of the TDA7402 partoffers several possibilities of programming especially for the adaptation to different IF-devices.


Parameters:

Technical/Catalog Information	TDA7402
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	44-LQFP
Type	Car Signal Processor
Packaging	Tray
Applications	Automotive Systems
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7402 TDA7402
