TDA7386

Audio Amplifiers 4X40W Quad Brdg Amp

product image

TDA7386 Picture
SeekIC No. : 00309865 Detail

TDA7386: Audio Amplifiers 4X40W Quad Brdg Amp

floor Price/Ceiling Price

Part Number:
TDA7386
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Power : 45 W
Output Type : 4-Channel Stereo Available Set Gain : 26 dB
THD plus Noise : 0.04 % Operating Supply Voltage : 18 V
Supply Current : 5.5 A Maximum Power Dissipation : 80000 mW
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : FLEXIWATT-25 Packaging : Tube

Description

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Product : Class-AB
Operating Supply Voltage : 18 V
THD plus Noise : 0.04 %
Output Type : 4-Channel Stereo
Available Set Gain : 26 dB
Maximum Power Dissipation : 80000 mW
Package / Case : FLEXIWATT-25
Output Power : 45 W
Supply Current : 5.5 A


Features:

*HIGH OUTPUT POWER CAPABILITY:
4 x45W/4  MAX.
4 x40W/4  EIAJ
4 x28W/4 @14.4V,1KHz,10%
4 x24W/4  @13.2V,1KHz,10%
*LOW DISTORTION
*LOW OUTPUT NOISE
*ST-BY FUNCTION
*MUTE FUNCTION
*AUTOMUTE AT MIN.SUPPLY VOL TAGE DETECTION
*LOW EXTERNAL COMPONENT COUNT:
INTERNALLY FIXED GAIN(26dB)
NO EXTERNAL COMPENSATION
NO BOOTSTRAP CAPACITORS

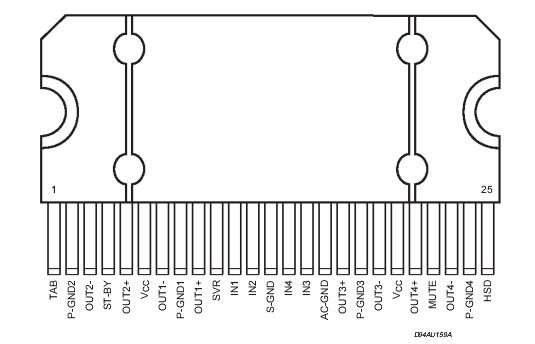

Pinout

  Connection Diagram




Specifications

Symbol Parameter Value Unit
VCC Operating Supply Voltage 18 V
VCC(DC) DC Supply Voltage 28 V
VCC(pk) Peak Supply Voltage (t= 50ms) 50 V
IO Output Peak Current:
Repetitive (Duty Cycle 10% at f= 10Hz) 4.5 A
Non Repetitive(t = 100s) 5.5 A
Ptot Power dissipation, (Tcase =70)

80 W
Tj Junction Temperature 150
Tstg Storage Temperature 55 to150



Description

The TDA7386 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high end car radio applications.
Thanks to the fully complementary PNP/NPN output configuration the TDA7386 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compactsets.


Parameters:

Technical/Catalog InformationTDA7386
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case25-Flexiwatt (bent and staggered leads)
TypeClass AB
Output Type4-Channel (Quad)
Voltage - Supply8 V ~ 18 V
PackagingTube
FeaturesMute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load45W x 4 @ 4 Ohm
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TDA7386
TDA7386
497 2175 5 ND
49721755ND
497-2175-5
