TDA7384A

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Output Power : 40 W
Product : Class-AB
Operating Supply Voltage : 18 V
THD plus Noise : 0.04 %
Output Type : 4-Channel Stereo
Available Set Gain : 26 dB
Maximum Power Dissipation : 80000 mW
Package / Case : FLEXIWATT-25
Supply Current : 5.5 A


Features:

*HIGH OUTPUT POWER CAPABILITY:
4 x40W/4  MAX.
4 x35W/4 EIAJ
4 x25W/4 @14.4V,1KHz,10%
4 x22W/4 @13.2V,1KHz,10%
*LOW DISTORTION
*LOW OUTPUT NOISE
*ST-BY FUNCTION
*MUTE FUNCTION
*AUTOMUTE AT MIN. SUPPLY VOL TAGE DETECTION
*LOW EXTERNAL COMPONENT COUNT:
INTERNALLY FIXED GAIN(26dB)
NO EXTERNAL COMPENSATION
NO BOOTSTRAP CAPACITORS

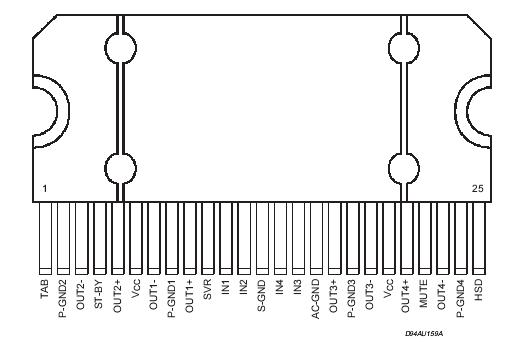

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Operating Supply Voltage	18	V
VCC(DC)	DC Supply Voltage	28	V
VCC(pk)	Peak Supply Voltage (t= 50ms)	50	V
IO	Output Peak Current:
	Repetitive (Duty Cycle 10% at f= 10Hz)	4.5	A
	Non Repetitive(t = 100s)	5.5	A
Ptot	Power dissipation, (Tcase =70)	80	W
Tj	Junction Temperature	150
Tstg	Storage Temperature	55 to150

Description

The TDA7384A is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high end car radio applications.
Thanks to the fully complementary PNP/NPN output configuration the TDA7384A allows a rail to railout put voltage swing with no need of bootstrap capacitors.The extremely reduced components count allows very compact sets.


Parameters:

Technical/Catalog Information	TDA7384A
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	25-Flexiwatt (bent and staggered leads)
Type	Class AB
Output Type	4-Channel (Quad)
Voltage - Supply	8 V ~ 18 V
Packaging	Tube
Features	Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	42W x 4 @ 4 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7384A TDA7384A 497 2173 5 ND 49721735ND 497-2173-5
