Packaging
: Tube
Maximum Operating Temperature
: + 150 C
Output Type
: 2-Channel Stereo
Mounting Style
: Through Hole
Operating Supply Voltage
: 9 V, 12 V, 15 V
THD plus Noise
: 0.08 %
Product
: Class-AB
Available Set Gain
: 26 dB
Common Mode Rejection Ratio (Min)
: 60 dB
Package / Case
: Multiwatt-15
Output Power
: 37 W
Maximum Power Dissipation
: 36000 mW
Supply Current
: 200 mA
Features: HIGHOUTPUTPOWERCAPABILITY:
2 x40W max./4
2 x35W/4 EIAJ
2 x25W4 @14.4V,1KHz,10%
DIFFERENTIALINPUTS
MINIMUMEXTERNALCOMPONENTCOUNT
INTERNALLYFIXEDGAIN(26dB)
MUTEFUNCTION (CMOSCOMPATIBLE)
AUTOMUTE AT MINIMUM SUPPLY VOLT-
AGEDETECTION
STAND-BYFUNCTION
NO AUDIBLE POP DURING MUTE AND ST-
BY OPERATIONS
CLIPPING DETECTOR WITH PROGRAMMA-

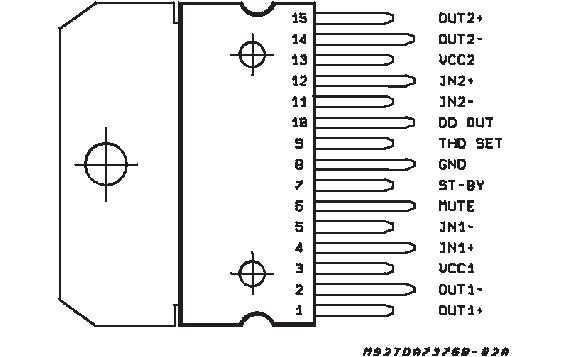

BLE DISTORTIONTHRESHOLDPinout
Specifications
Symbol |
Parameter |
Value |
Unit |
VOP |
Operating Supply Voltage |
18 |
V |
VS |
DC Supply Voltage |
28 |
V |
Vpeak |
Peak Supply Voltage (t= 50ms) |
50 |
V |
IO |
Output Peak Current(nonrep. t = 100s)
Output Peak Current(rep.f > 10Hz) |
4.5
3.5 |
A
A |
Ptot |
Power Dissipation at Tcase =85
|
36 |
W |
Tstg, Tj |
Storage and Junction Temperature |
-40 to 150 |
|
DescriptionThe TDA7376B is a new technology dual bridge Audio Amplifier in Multiwatt 15 packagedesigned for car radioapplications.Thanksto the fullycomplementary PNP/NPN output stage configuration the TDA7376Bdelivers a rail-to-rail voltage swing with no need of bootstrap capacitors. Differential input pairs, that will accept either single ended or differentialinput signals,guaranteehighnoise immunity making thedevice suitable for both car radioand car boostersapplications.
The audio mute control of the TDA7376B, that attenuates the outputsignal of theaudio amplifiers, suppressespop on - off transients and cuts any noises coming from previousstages. The St-By control, that debiases the amplifiers, reduces the cost of the powerswitch. The on-board programmable distor-tion detector allows compression facility whenever theampifier is overdriven,so limiting the distortion at any levels inside the presettable range.
Parameters: | Technical/Catalog Information | TDA7376B |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
| Type | Class AB |
| Output Type | 2-Channel (Stereo) |
| Voltage - Supply | 8 V ~ 18 V |
| Packaging | Tube |
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby |
| Max Output Power x Channels @ Load | 40W x 2 @ 4 Ohm |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TDA7376B
TDA7376B
|
TDA7376B Data Sheet
