Product Details

Description



Features:

*MINIMUM EXTERNAL COMPONENT COUNT
*NO BOOTSTRAP CAPACITORS
*NO BOUCHEROT CELLS
*CLIP DETECTOR OUTPUT
*HIGH OUTPUT POWER
*FIXED GAIN
*VERY LOW STAND-BY CURRENT (1A typ)
*NO SWITCH ON/OFF NOISE

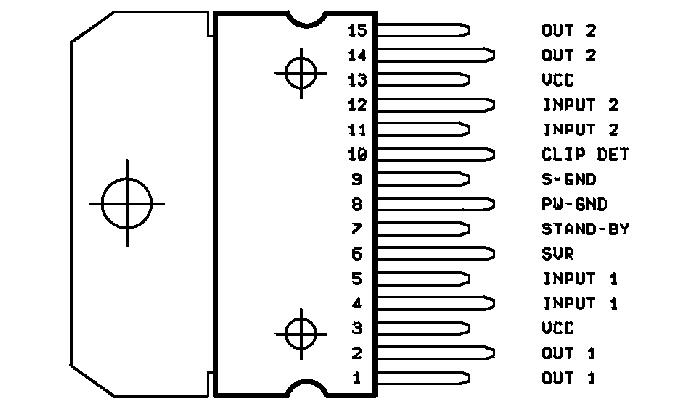

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS DC Supply Voltage 28 V
VOP Operating SupplyVoltage
 18 V
VPEAK Peak Supply Voltage (t = 50ms) 50 V
IO Output Peak Current (not rep. t= 100s) 4.5 A
IO Output Peak Current (rep. f > 10Hz) 3.5 A
Ptot Power Dissipation (T =85°C)
case		 36 W
Tstg,Tj Storage and Junction Temperature -40 to 150 °C



Description

The TDA7374B is a new technology class AB Audio Dual Bridge Power Amplifier in Multiwatt packagedesignedfor carradioapplications.
Thanksto thefully complementaryPNP/NPN out-put configuration the high powerperformances of the TDA7374B are obtained without bootstrap capacitors.
