TDA7372B

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Output Power : 10 W
Mounting Style : Through Hole
Operating Supply Voltage : 9 V, 12 V, 15 V
THD plus Noise : 0.08 %
Product : Class-AB
Output Type : 4-Channel Stereo
Package / Case : Multiwatt-15
Supply Current : 150 mA
Available Set Gain : 40 dB
Maximum Power Dissipation : 32000 mW


Features:

*HIGH POWER CAPABILITY:
4x6Wmin/4  @14.4V, 1KHz, 10%
4x10Wtyp/2  @14.4V, 1KHz,10%
*MINIMUM EXTERNAL COMPONENT COUNT
- INTERNALLY FIXED GAIN(40dB)
-NO BOOTSTRAP CAPACITORS
-NO EXTERNAL COMPENSATION
*ST-BY FUNCTION (CMOSCOMPATIBLE)
*MUTE FUNCTION(CMOSCOMPATIBLE)
*NO AUDIBLE POP DURING MUTE/ST-BY
OPERATIONS
*LOWSUPPLY SELF MUTING
*PROGRAMMABLE TURN ON DELAY

*FORTUITOUS OPEN GND
*REVERSE BATTERY
*ESD PROTECTION

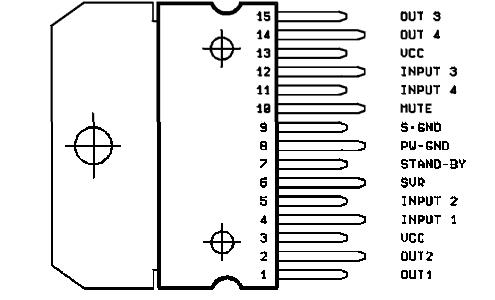

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	28	V
VOP	Operating SupplyVoltage	18	V
VPEAK	Peak SupplyVoltage (t = 50ms)	50	V
IO	Output Peak Current (notrep. t = 100s)	4	A
IO	Output Peak Current (rep.f > 10Hz)	3	A
Ptot	Power Dissipation(Tcase =85°C)	32	W
Tstg ,Tj	Storage and JunctionTemperature	-40 to 150	°C

Description

The TDA7372B is a new technology class AB quad channels Audio Power Amplifier in Multiwatt15 package designed for car radio applications.
Thanks to the fully complementary PNP/NPN output configuration the TDA7372B delivers a rail to rail voltage swing with no need of boostrap capacitors.


Parameters:

Technical/Catalog Information	TDA7372B
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Type	Class AB
Output Type	4-Channel (Quad)
Voltage - Supply	8 V ~ 18 V
Packaging	Tube
Features	Depop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	10W x 4 @ 2 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7372B TDA7372B
