Common Mode Rejection Ratio (Min)
:
Packaging
: Tube
Maximum Operating Temperature
: + 150 C
Mounting Style
: Through Hole
THD plus Noise
: 0.05 %
Operating Supply Voltage
: 9 V, 12 V, 15 V
Product
: Class-AB
Output Type
: 1-Channel Mono or 2-Channel Stereo
Package / Case
: Multiwatt-11
Available Set Gain
: 26 dB
Output Power
: 22 W
Maximum Power Dissipation
: 36000 mW
Supply Current
: 120 mA
Features: *VERYFEW EXTERNALCOMPONENTS
*NO BOUCHEROT CELLS
*NO BOOSTRAPCAPACITORS
*HIGH OUTPUT POWER
*NO SWITCH ON/OFF NOISE
*VERYLOW STAND-BY CURRENT
*FIXED GAIN (20dB STEREO)
*PROGRAMMABLE TURN-ON DELAY

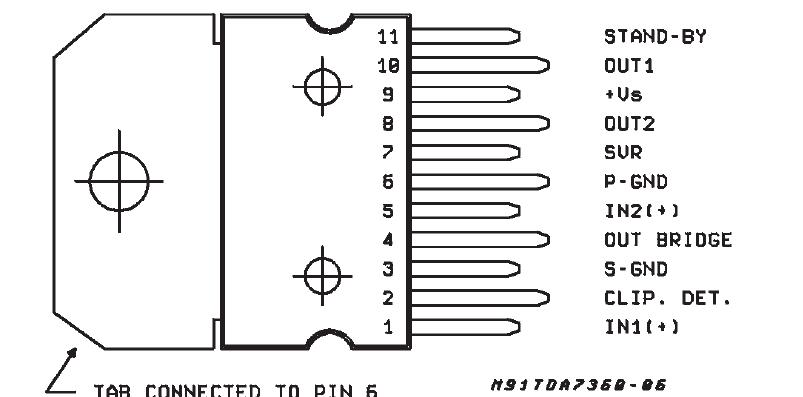

*CLIPPING DETECTOR Pinout
Specifications
Symbol
|
Parameter |
Test Conditions
|
Unit |
| VS |
Operating Supply Voltage
|
18 |
V |
| VS |
DC Supply Voltage |
28 |
V |
|
VS |
Peak Supply Voltage (for t = 50ms) |
50 |
V |
| Io |
Output Peak Current (non rep. for t = 100µs) |
5 |
A |
| Io |
Output Peak Current (rep. freq. > 10Hz) |
4 |
A |
| Ptot |
Power Dissipation at Tcase =85°C |
36 |
W |
| Tstg,TJ |
Storage and Junction Temperature |
-40 to 150 |
°C |
DescriptionThe TDA7360 is a new technology class AB Audio Power Amplifier in the Multiwatt[ package designed for car radio applications.
Thanks to the fully complementary PNP/NPN output configuration the high power performance of the TDA7360 is obtained without bootstrap capacitors.
A delayed turn-on mute circuit eliminates audible on/off noise, and a novel short circuit protection system prevents spurious intervention with highly inductive loads.
The device provides a circuit for the detection of clipping in the output stages. The output, an open collector, is able to drive systems with automatic volume control.
Parameters: | Technical/Catalog Information | TDA7360 |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Type | Class AB |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Voltage - Supply | 8 V ~ 18 V |
| Packaging | Tube |
| Features | Depop, Short-Circuit and Thermal Protection, Standby |
| Max Output Power x Channels @ Load | 22W x 1 @ 3.2 Ohm; 12W x 2 @ 1.6 Ohm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TDA7360
TDA7360
497 3973 5 ND
49739735ND
497-3973-5
|
TDA7360 Data Sheet
