TDA7345

Features:

*1 STEREOINPUT
*VOLUMECONTROL IN 1.25dB STEP
*TREBLE AND BASS CONTROL
*THREE SURROUND MODES ARE AVAILABLE:
   MOVIE,MUSIC AND SIMULATED
*FOUR SPEAKER ATTENUATORS:
   4 INDEPENDENT SPEAKERSCONTROL
*IN 1.25dBSTEPS FOR BALANCE FACILITY
   INDEPENDENTMUTE FUNCTION
*ALL FUNCTIONS PROGRAMMABLE VIA SERIAL BUS

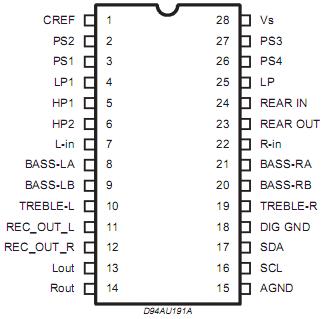

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	11	V
Tamb	Operating Ambient Temperature	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

The TDA7345 is a volume tone (bass and treble) balance (Left/Right) processor for quality audio applications in car radio and Hi-Fi systems.

It reproduces surround sound by using phase shifters and a signal matrix. Control of all the functions is accomplished by serial bus.

The AC signal setting of the TDA7345 is obtained by resistor networks and switches combined with operational amplifiers.

Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.
