TDA7343

Features:

*INPUT MULTIPLEXER
   - TWO STEREO AND ONE MONO INPUTS
   - SELECTABLEINPUT GAIN FOR OPTIMAL
    ADAPTATIONTO DIFFERENT SOURCES
*FULLY PROGRAMMABLE LOUDNESS FUNCTION
*VOLUME CONTROL IN 0.3dB STEPS INCLUDING GAINUP TO 20dB
*ZERO CROSSING MUTE AND DIRECT MUTE
*SOFT MUTE CONTROLLED BY SOFTWARE
   OR HARDWARE PIN
*BASS AND TREBLE CONTROL
*FOUR SPEAKER ATTENUATORS
   - FOUR INDEPENDENT SPEAKERS
   CONTROL IN 1.25dB STEPS FOR
   BALANCEAND FADERFACILITIES
   - INDEPENDENTMUTE FUNCTION
*ALL FUNCTIONS PROGRAMMABLE VIA SERIAL I ² CBUS

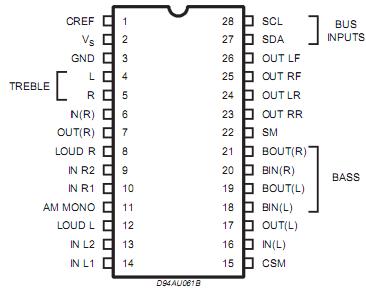

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	10.5	V
Tamb	Operating Ambient Temperature	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

*The TDA7343 is an upgrade of the TDA7313 audioprocessor.
*Thanks to the used BIPOLAR/CMOS technology, very low distortion, low noise and DC-stepping are obtained.

*Due to a highly linear signal processing, using CMOS-switching techniques instead of standard bipolar multipliers, very low distortion and very low noise are obtained Several new features like softmute, zero-crossing mute and pause detector are implemented.

*The Soft Mute function can be activated in two ways:
   1 Via serial bus (bit D0, Mute Byte)
  2 Directly on pin 22 through an I/O line of the TDA7343*Very low DC stepping is obtained by use of a BICMOS technology.
