TDA7331

Features:

*VERY HIGH RDS DEMODULATION QUALITY
WITH IMPROVED DIGITAL SIGNAL PROCESSING
*HIGH PERFORMANCE, 57KHz BANDPASS
FILTER (8thORDER)
*PURELY  DIGITAL RDS DEMODULATION
WITHOUT EXTERNAL COMPONENTS
*ARI INDICATION AND RDS SIGNAL QUALITYOUTPUTS
*4.332MHzCRYSTAL OSCILLATOR
(8.664 and 17.328MHz SELECTABLE OPTIONS)
*LOW NOISE CMOS TECHNOLOGY
*LOW RADIATION

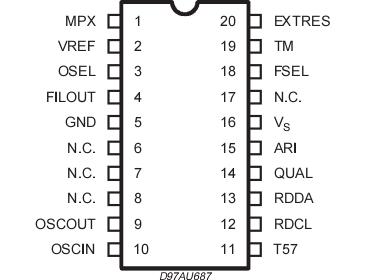

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	7	V
Top	Operating Temperature Range	-40 to 85
Tstg	StorageTemperature	-55 to 150

Description

The TDA7331, an improved version of TDA7330B, recovers the additional inaudible RDS information which is transmitted by FM radio
broadcasting stations and operates in accordance with the EBU (European Broadcasting Union) specifications.
The TDA7331 is made up of two sections: a cas-caded antialiasing + switched capacitors band-pass filter for precise RDS band selection and a demodulating section that performs the extraction od RDS data stream (RDDA) and clock (RDCL), to be furher processed by a suitable RDS decoder.
Outputs for RDS signal qualityand ARI indication are also present.
