Product Details

Description



Features:

*FM INPUT AND PRECOUNTER FOR UP TO  140MHz
*AM INPUT FOR UP TO 40MHz
*6-BIT SWALLOW COUNTER, 8-BIT PROGRAMMABLE COUNTER FORFM AND SW
*14-BIT PROGRAMMABLE COUNTER FOR LWAND MW
*THREE WIRES 8-BIT SERIAL INTERFACE
*ON-CHIP REFERENCE OSCILLATOR AND COUNTER
*PROGRAMMABLE SCANNING STEPS FOR AMANDFM
*DIGITAL PHASE DETECTOR ANDLOOP FILTER
*TWO SEPARATE FREE PROGRAMMABLE
FILTER APPLICATIONS  AVAILABLE
*TUNING VOL TAGE OUTPUT 0.5 TO 9.5V
*PROGRAMMABLE  CURRENT SOURCES TO
SETTHELOOP GAIN
*ON-CHIP POWER ONRESET
*STANDBY MODE


Pinout

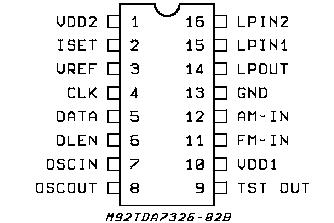

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD1-VSS Supply Voltage - 0.3to + 7 V
VDD2 -VSS Supply Voltage - 0.3 to + 12 V
VIN Input Voltage VSS - 0.3to V + 0.3
 V
V
OUT		 Output Voltage VSS - 0.3to V + 0.3
 V
