TDA7316

Features:

VOLUME CONTROL IN0.375dB STEP
FOUR BANDS STEREO GRAPHIC EQUALIZER
CENTER FREQUENCY, BANDWIDTH, MAX
BOOST/CUT DEFINED BY EXTERNAL COMPONENTS
±14dBCUT/BOOST CONTROL IN2dB/STEP
ALL FUNCTIONS PROGRAMMABLE VIA SERIALBUS
VERY LOW DISTORTION
VERY LOW NOISE AND DC STEPPING BY
USE OF A MIXED BIPOLAR/CMOS TECHNOLOGY

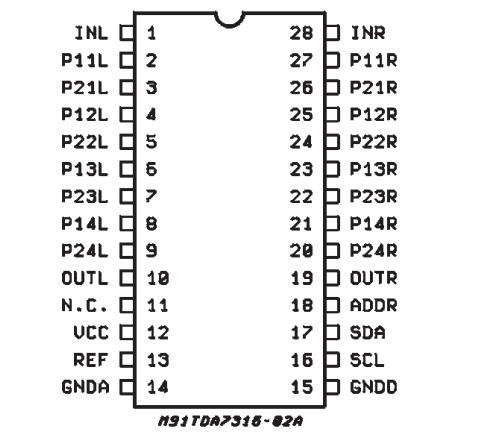

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	10.2	V
Top	Operating Temperature Range	-40 to +85	°C
Tstg	StorageTemperature Range	-55to +150	°C
Rtjvins	Thermal ResistanceJunction pins max	85	°C/W

Description

The TDA7316 is a monolithic, digitally controlled graphicequalizerrealizedin BiCMOS mixed technology.Thestereosignal,beforeanyfiltering,can be at  tenuated down to -17.625dB in 0.375dB step.
All the functions can be programmed via serial bus making easy to build a Pcontrolledsystem.
Signal path is designed for very low noise and distortion.
