TDA7295

Audio Amplifiers 80W Audio Amplifier

product image

TDA7295 Picture
SeekIC No. : 00307043 Detail

TDA7295: Audio Amplifiers 80W Audio Amplifier

floor Price/Ceiling Price

US $ 2.06~3.2 / Piece | Get Latest Price
Part Number:
TDA7295
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $3.2
  • $2.6
  • $2.31
  • $2.06
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Power : 80 W
Output Type : 1-Channel Mono Available Set Gain : 80 dB
THD plus Noise : 0.01 % Maximum Power Dissipation : 50000 mW
Maximum Operating Temperature : + 70 C Mounting Style : Through Hole
Package / Case : Multiwatt-15 Packaging : Tube

Description

Common Mode Rejection Ratio (Min) :
Operating Supply Voltage :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.01 %
Mounting Style : Through Hole
Output Type : 1-Channel Mono
Product : Class-AB
Available Set Gain : 80 dB
Maximum Power Dissipation : 50000 mW
Package / Case : Multiwatt-15
Output Power : 80 W


Features:

VERY HIGH OPERATING VOLTAGE RANGE(±40V)
DMOS POWER STAGE
HIGH OUTPUT POWER (UP TO 80W MUSIC POWER)
MUTING/STAND-BY FUNCTIONS
NO SWITCH ON/OFF NOISE
NO BOUCHEROT CELLS
VERYLOW DISTORTION
VERYLOW NOISE
SHORT CIRCUIT PROTECTION
THERMAL SHUTDOWN



Pinout

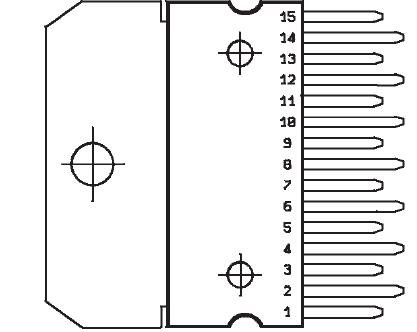

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage ±40 V
IO Output Peak Current 6 A
Ptot Power Dissipation Tcase= 70°C 50 W
Top Operating Temperature Range 0 to +70 °C
Tstg, Tj Storage and Junction Temperature 150 °C



Description

  The TDA7295 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads even in presence of poor supply regulation of the TDA7295, with high Supply Voltage Rejection.


  The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.




Parameters:

Technical/Catalog InformationTDA7295
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CaseMultiwatt-15 (Vertical, Bent and Staggered Leads)
TypeClass AB
Output Type1-Channel (Mono)
Voltage - Supply±10 V ~ 40 V
PackagingTube
FeaturesDepop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load80W x 1 @ 8 Ohm
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TDA7295
TDA7295
497 3965 5 ND
49739655ND
497-3965-5
